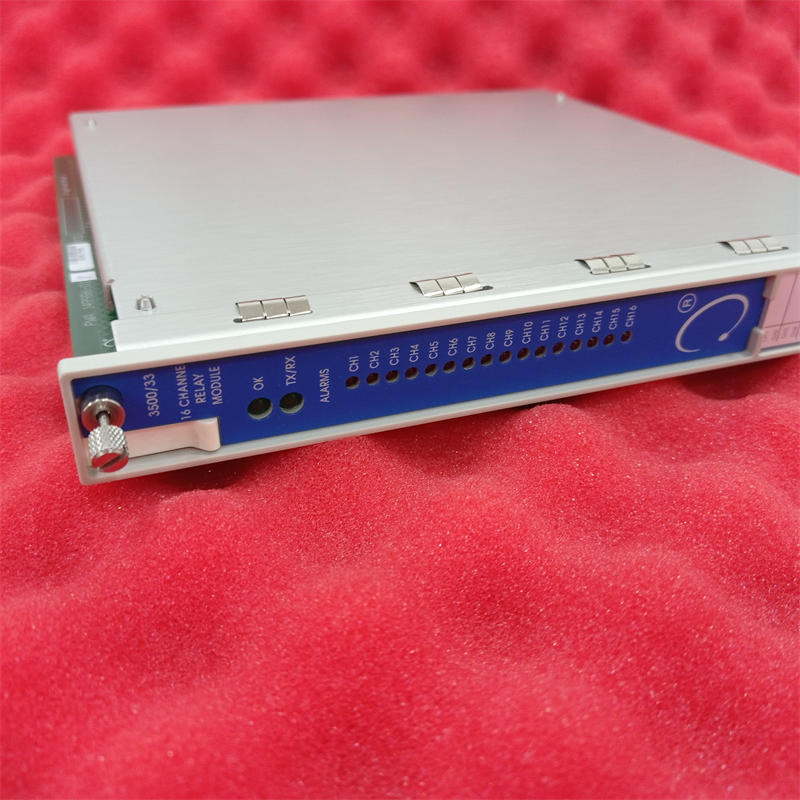

Bently Nevada 3500/33 16-Channel Relay Module 149986-01
The Bently Nevada 3500/33 16-Channel Relay Module with part number 149986-01 is a module designed for use in the Bently Nevada 3500 Monitoring System.
Item NO.:
3500/33 149986-01Payment:
T/TMarket Price:
$430Product Origin:
United States (US)Product weight:
0.45kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | Bently Nevada |
| Model | 149986-01 |
| Product ID | 3500/33 |
| Catalog | 3500 Series Monitor System |
| Description | 3500/33 16-Channel Relay Module 149986-01 |
| Country of Origin | United States (US) |
| Dimension | 241.3 mm x 24.4 mm x 90.8 mm |
| Weight | 0.45kg |
The Bently Nevada 3500/33 16-Channel Relay Module with part number 149986-01 is a module designed for use in the Bently Nevada 3500 Monitoring System.
This relay module is used for monitoring and controlling various processes or equipment in industrial applications. It provides 16 channels of relay outputs that can be used to activate alarms, trip actions, or other control functions based on the monitored parameters.
The Bently Nevada 3500 system is a widely used machinery protection and condition monitoring system that is primarily used in the oil and gas industry. It is designed to monitor the health and performance of critical machinery such as turbines, compressors, generators, and pumps.
The 3500/33 relay module is typically installed in conjunction with other modules in the 3500 system, such as the 3500/42M Rack Interface Module, which provides the communication interface between the 3500 system and the host control system.
Each channel of the relay module can be individually configured and programmed to perform specific actions based on the monitored parameters and pre-defined logic. This allows for a highly flexible and customizable monitoring and control system.
|
Bently Nevada 3500/33 16-Channel Relay Module 149986-01 Datasheet
