The CA202 piezoelectric accelerometer is designed for heavy-duty industrial vibration monitoring and measurement.
Item NO.:
CA202 144-202-000-206Payment:
T/TMarket Price:
$5715Product Origin:
SwizerlandProduct weight:
250gLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | Vibration |
| Model | CA202 |
| Product ID | CA202 144-202-000-206 |
| Catalog | Vibration Monitoring |
| Description | Piezoelectric Accelerometer CA202 144-202-000-206 |
| Country of Origin | Swizerland |
| Dimension | 79.4mm*54mm*36.5mm |
| Weight | 250g |
The CA202 sensor features a symmetrical shearmode polycrystalline measuring element with internal case insulation in an austenitic stainlesssteel case (housing).

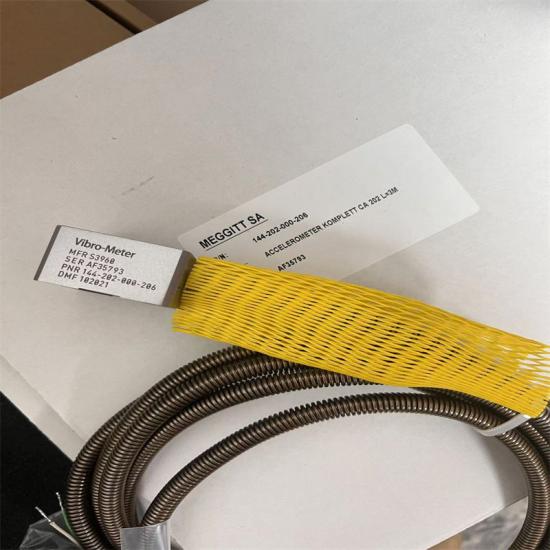

The CA202 is fitted with an integral low-noise cable that is protected by a flexible stainless-steel protection hose (leaktight) which is hermetically welded to the sensor to produce a sealed leaktight assembly.
The CA202 piezoelectric accelerometer is available in different versions for different industrial environments: Ex versions for installation in potentially explosive atmospheres (hazardous areas) and standard versions for use in nonhazardous areas.
The CA202 piezoelectric accelerometer is designed for heavy-duty industrial vibration monitoring and measurement.
|

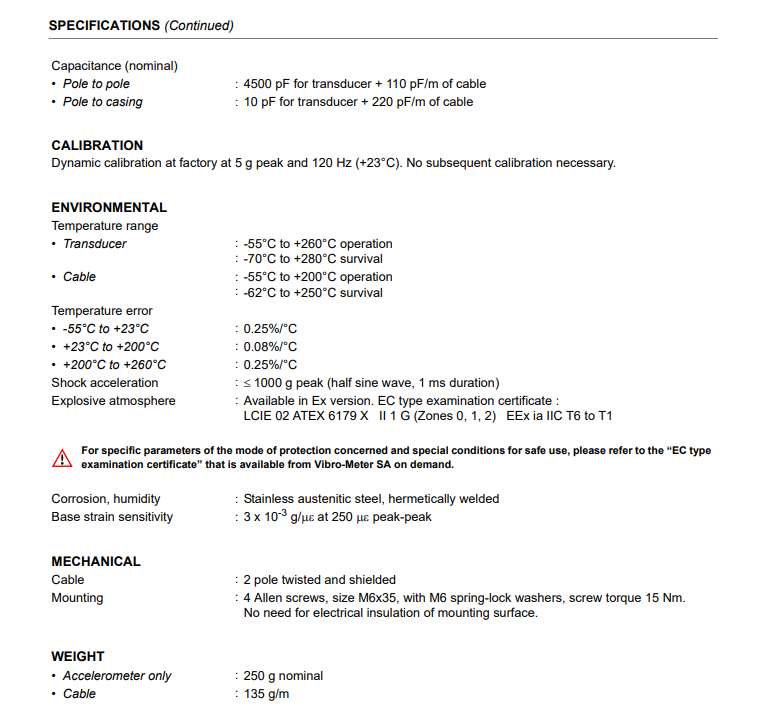

CA 202 Piezoelectric Accelerometer CA202 144-202-000-206 Datasheet
