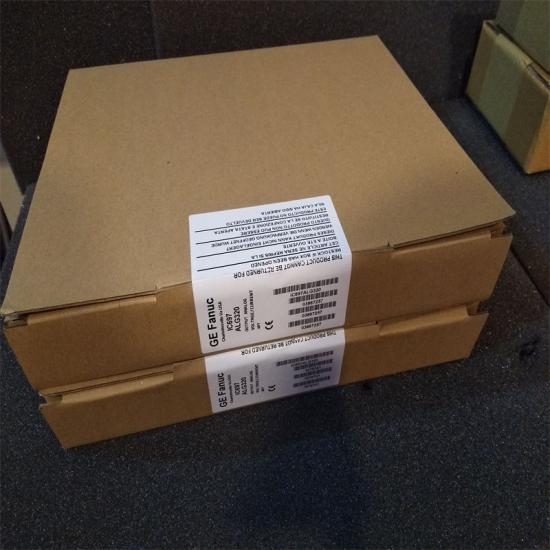

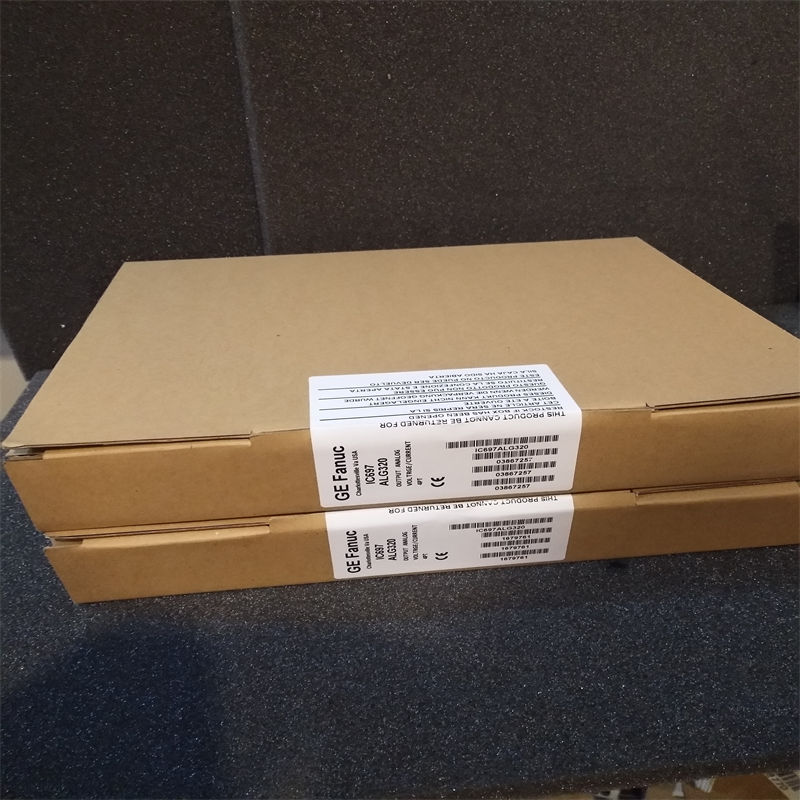

The IC697ALG320 is a GE Analog Output Module.
Item NO.:
IC697ALG320Payment:
T/TMarket Price:
$1000Product Origin:
United States (US)Product weight:
1kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | GE |
| Model | IC697ALG320 |
| Product ID | IC697ALG320 |
| Catalog | GE FANUC |
| Description | IC697ALG320 Analog Output Module |
| Origin | United States (US) |
| Dimension | 634 mm x 145 mm x 140 mm |
| Weight | 1kg |
The IC697ALG320 high level Analog Output system for the Programmable Logic Controller (PLC) accepts digital data from the CPU or other controllers accessing the PLC backplane. This output data is converted by a Digital to Analog (D/A) converter to analog outputs of up to 10 volts full scale, or 0 to 22.5 milliamp current loop signals. The basic converter is 16 bits resolution with 14-bit monotonicity. Outputs are isolated from the backplane and are protected against transient and steady-state overvoltage conditions.
Features:
▪ High Level Analog voltage and current outputs on one module
▪ Output module has four outputs individually configurable for voltage or current
▪ Provides unipolar or bipolar Analog voltage outputs up to Ç 10 volts full scale
▪ Provides 0 to 22.5 milliamp current loop signals
▪ Individual user scaling on each output channel
▪ Fast update rate
▪ No jumpers or DIP switches for user to configure
▪ Calibrated at factory with factory calibration data stored in non-volatile EEPROM memory
Easy configuration using the configuration function of the MS-DOS or Windowsprogramming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed on the programming device. The programming device can be an IBM XT, AT, PS/2 or compatible Personal Computer.
|
