GE FAUNC IC697BEM713 Bus Transmitter Module

GE FAUNC IC697BEM713 Bus Transmitter Module

The IC697BEM713 is a GE Bus Transmitter Module.

  • Item NO.:

    IC697BEM713
  • Payment:

    T/T
  • Market Price:

    $1000
  • Product Origin:

    United States (US)
  • Product weight:

    1kg
  • Lead Time:

    In stock
  • Shipping Port:

    Xiamen
Contact Us:

 » Description

 Manufacture  GE
 Model  IC697BEM713
 Product ID  IC697BEM713
 Catalog  GE FANUC
 Description  IC697BEM713 Bus Transmitter Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC697BEM731



The IC697BEM713 Bus Transmitter Module (BTM) permits expansion from the main CPU rack when more modules are required in a system than can be contained in the CPU rack. The BTM allows expansion from the CPU rack to a maximum of 7 additional IC697 PLC racks. It also provides a high performance parallel interface to the programming device.

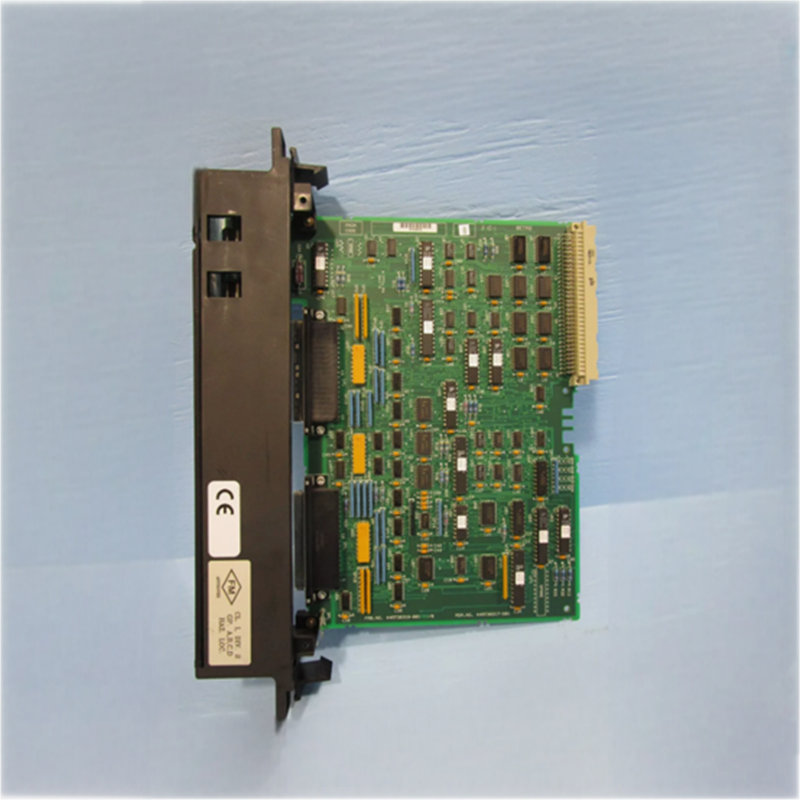

The module occupies a single slot and has two connectors. The top one is for attachment to the programming device. The bottom one is for a daisychained arrangement through Bus Receiver Modules to expansion racks. Three green LEDs provide status indication of each port and module status. The BTM must be configured into the IC697 PLC system using the MS-DOS or Windows programming software configuration function.
Features:
▪ High Performance Parallel Programmer Interface
▪ Bus Expansion Interface
▪ Supports up to 7 Expansion racks
▪ Three LED indicators provide module, programmer port, and expansion port status
▪ No DIP switches to set, easy software configuration into PLC system

  •  » Datasheet Link

GE FANUC IC697BEM713 Bus Transmitter Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
