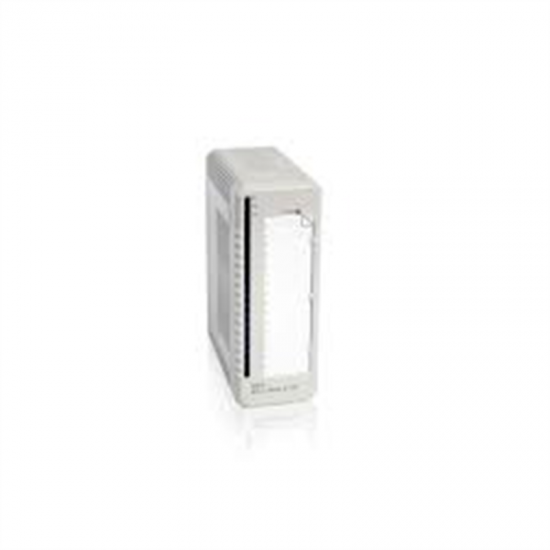

The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input.
Item NO.:
AI810 3BSE008516R1Payment:
T/TMarket Price:
$370Product Origin:
Estonia (EE) / India (IN)Product weight:
0.2kgLead Time:
In stockShipping Port:
Xiamen
» Description |
Manufacture | ABB |
Model | AI810 |
Product ID | 3BSE008516R1 |
Catalog | 800xA S800I/O |
Description | AI801 Analog Input 8 ch |
Country of Origin | Estonia (EE) / India (IN) |
Dimension | 45mm*102mm*119mm |
Weight | 0.2kg |
The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.
Features and benefits
8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
1 group of 8 channels isolated from ground
12 Bit resolution
Input shunt resistors protected to 30 V by PTC resistor
Analog inputs are short circuit secured to ZP or +24 V
The input withstand HART communication.
|
