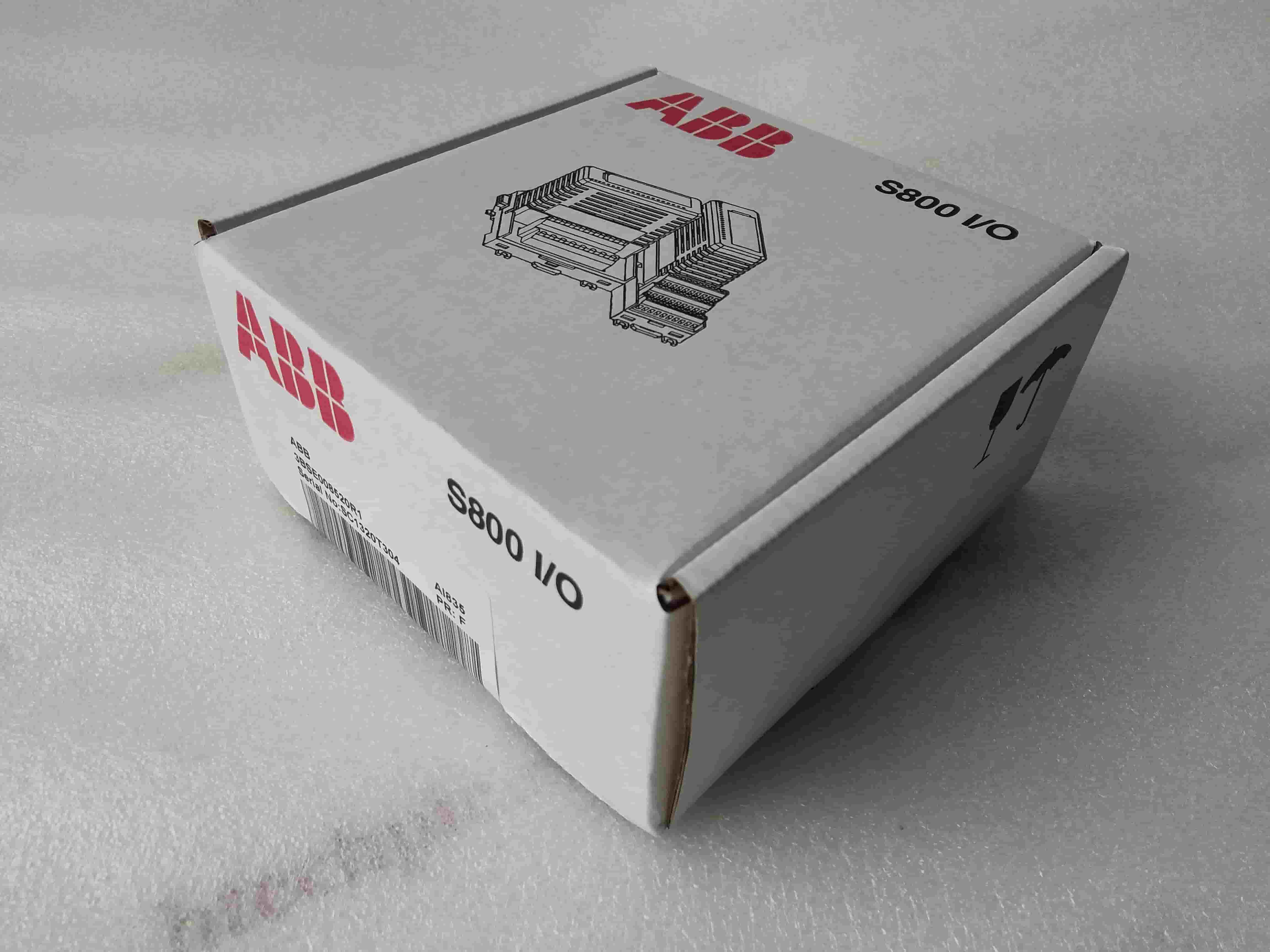

The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements.
Item NO.:
AI835 3BSE008520R1Payment:
T/TMarket Price:
$570Product Origin:
Sweden (SE) / Germany (DE)Product weight:
0.2kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | AI835 |
| Product ID | 3BSE008520R1 |
| Catalog | 800xA |
| Description | AI835 Analog Input 8 ch. |
| Country of Origin | Sweden (SE) / Germany (DE) |
| Dimension | 150mm*150mm*75mm |
| Weight | 0.2kg |
The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.
One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.
Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed.
|
ABB AI835 Analog Input Module 3BSE008520R1 Datasheet
