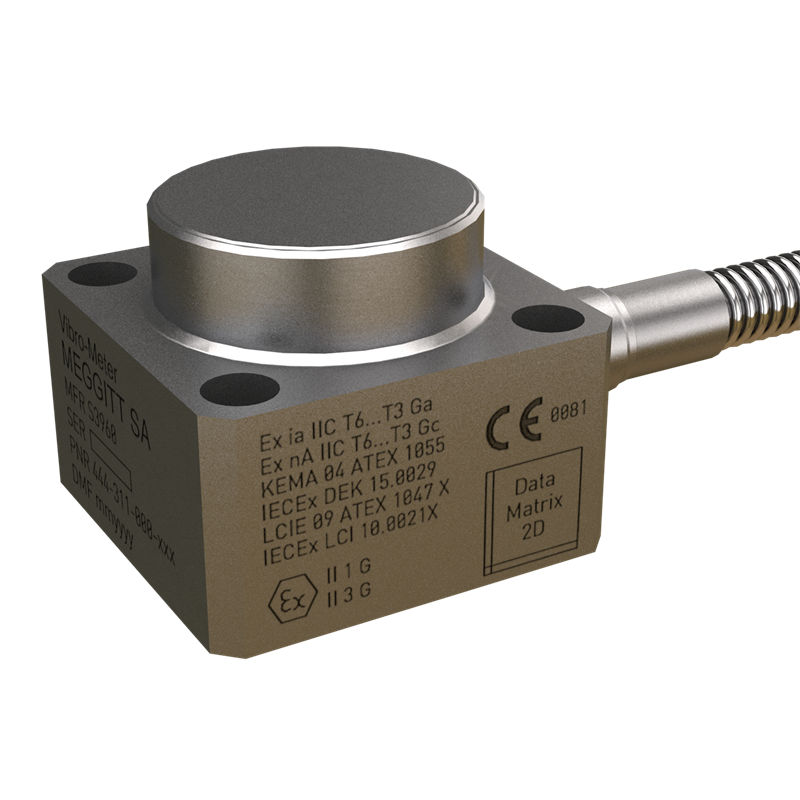

The CE310 piezoelectric accelerometer is a vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments and/or hazardous areas.
Item NO.:
CE310Payment:
T/TMarket Price:
$1715Product Origin:
SwizerlandProduct weight:
140gLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | Vibration |
| Model | CE310 |
| Product ID | IPC704 244-704-000-042 |
| Catalog | Vibration Monitoring |
| Description | CE310 piezoelectric accelerometer |
| Country of Origin | Swizerland |
| Dimension | 79.4mm*54mm*36.5mm |
| Weight | 140g |
The CE310 piezoelectric accelerometer is a vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments and/or hazardous areas.
The CE310 sensor features a symmetrical shearmode measuring element using polycrystalline material. The sensor uses integrated electronics to provide the required signal processing,
eliminating the need for an external signal conditioner (charge amplifier). The electronics also performs charge-to-current conversion in order to provide a current-modulated output signal that is suitable for transmission over long distances.
The CE310 is fitted with an integral cable (twisted pair, shielded) in a hermetically sealed link, protected by a flexible, leak-tight protection tube (stainless-steel hose). More specifically, the sensor and protection tube are hermetically welded to one another, resulting in a system that is fully protected against cooling fluids, lubricants, water, steam and other potential contaminants. This makes the CE310 an extremely reliable device suitable for the long-term monitoring of vibration in many industrial applications.
|
CE310 piezoelectric accelerometer PDF Datasheet
