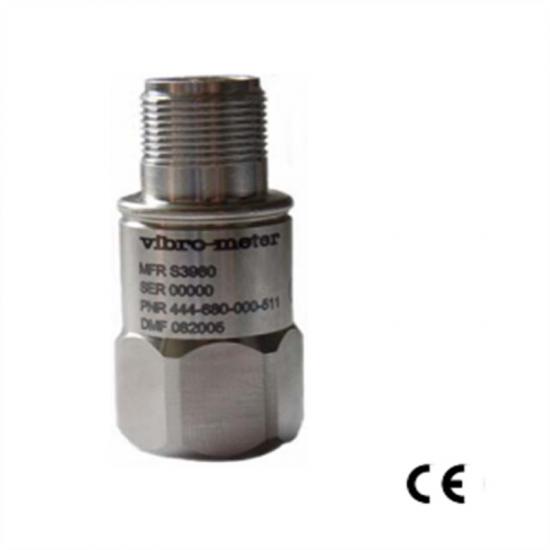

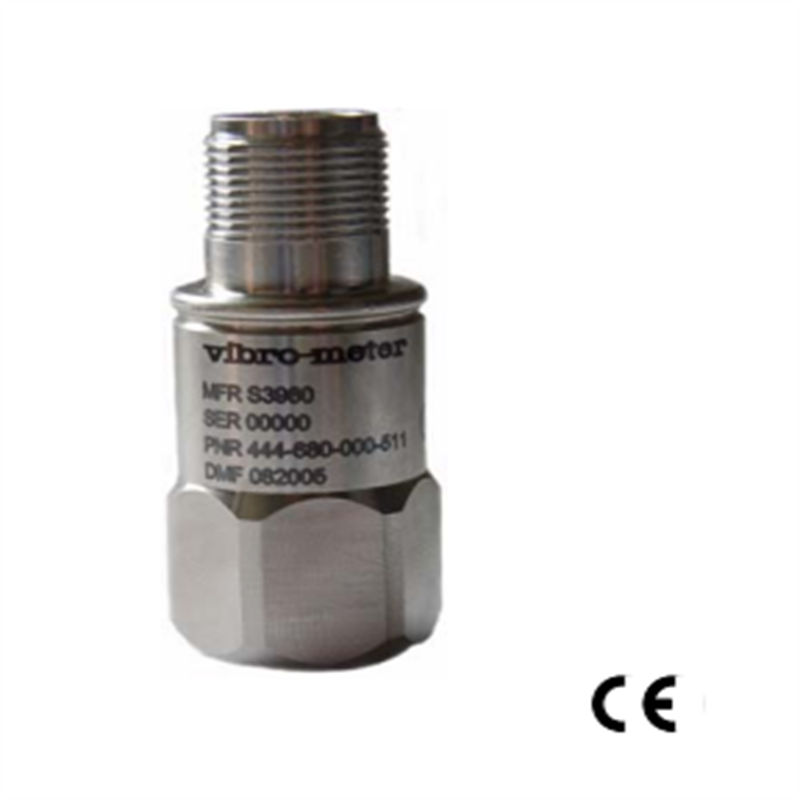

CE680 444-680-000-511 Piezoelectric Accelerometer with Integrated Electronics
The CE 680 M511 is an all-purpose vibration sensor designed for use in harsh industrial machinery environments.
Item NO.:
CE680 444-680-000-511Payment:
T/TMarket Price:
$31428Product Origin:
SwizerlandProduct weight:
0.4kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | Vibration |
| Model | CE680 |
| Product ID | 444-680-000-511 |
| Catalog | Vibration Monitoring |
| Description | CE680 444-680-000-511 Piezoelectric Accelerometer with Integrated Electronics |
| Country of Origin | Swizerland |
| Dimension | 262mm*40mm*187mm |
| Weight | 0.40kg |
FEATURES
1.Designed for medium temperature industrial applications (-50°C to +120°C)
2.Frequency response
1 Hz to 9 kHz: ±10%
0.5 Hz to 14 kHz: -3 dB
3.Shear mode operation, therefore no output due to thermal transients
4.Hermetically sealed for harsh environments
5.Case insulated, internally shielded
6.ESD protection
The CE 680 M511 is an all-purpose vibration sensor designed for use in harsh industrial machinery environments. It uses the industry standard 2-wire voltage transmission technique with a constant current supply. The output signal has a sensitivity of 100 mV/g.
Thanks to the accelerometer's isolated ground and internal shield, no ground loops or frame voltage are present to disturb the measurement.
The CE 680 M511 shows extremely low noise levels and exceptional bias voltage stability at elevated temperatures
|
CE680 444-680-000-511 Piezoelectric Accelerometer with Integrated Electronics Datasheet PDF
