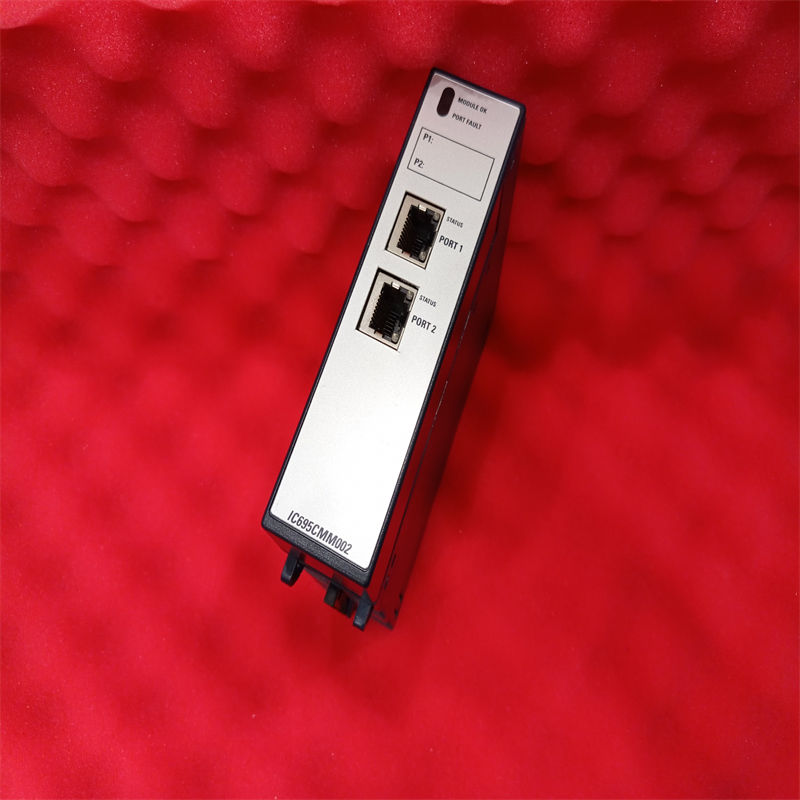

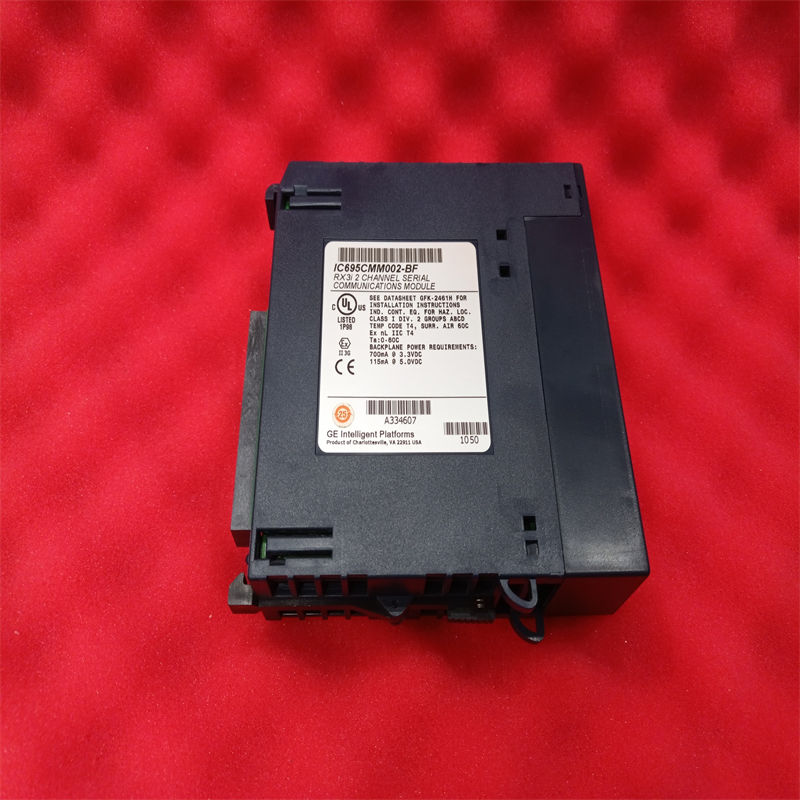

Serial Communications module IC695CMM002 provides two independent, isolated serial ports. Each port can be configured for MODBUS Master, MODBUS Slave, or Serial I/O protocol. In addition, for modules that are version 1.10 or later, each port can be configured for CCM Slave protocol using Proficy Machine Edition 5.6, SIM 6 or later.
This module must be located in an RX3i Universal Backplane. RX3i Serial Communications can be hot-inserted and removed following the instructions in the PACSystems RX3i System Manual.
Additional module features include:
▪ Port-to-port isolation and port-to-backplane isolation
▪ RS-232, RS-485/422 communication, software-selected
▪ Hardware handshake: RTS/CTS for RS-232
▪ Selectable Baud Rates: 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K, 115.2K
▪ Module fault status reporting (Watchdog, Ram Fail, Flash Fail)
▪ Module identity and status reporting, including LED status indicators
▪ Meets CE, UL/CUL 508 and 1604, and ATEX requirements
▪ Flash memory for future upgrades
