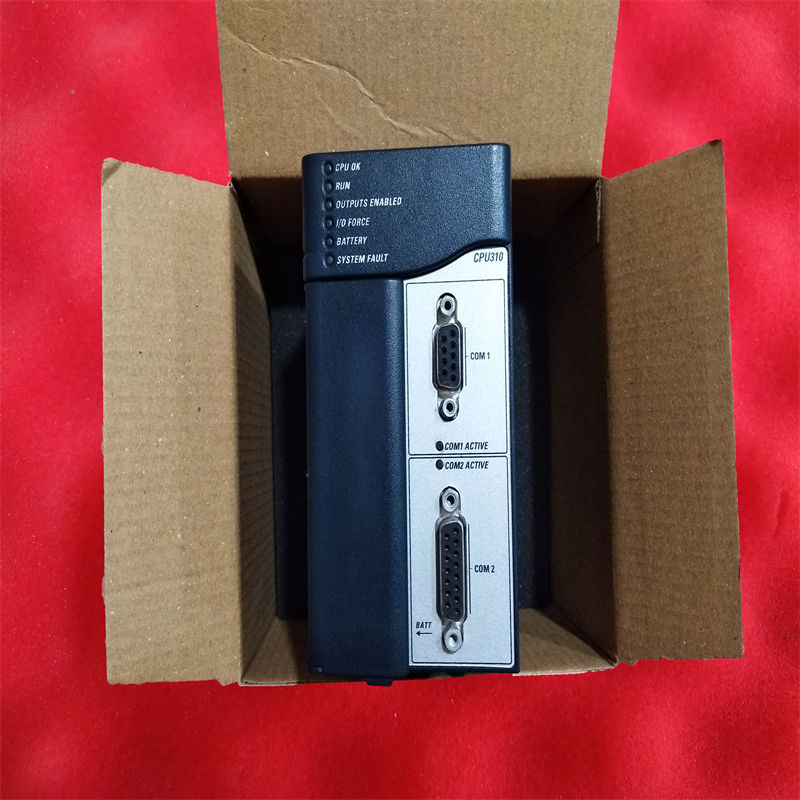

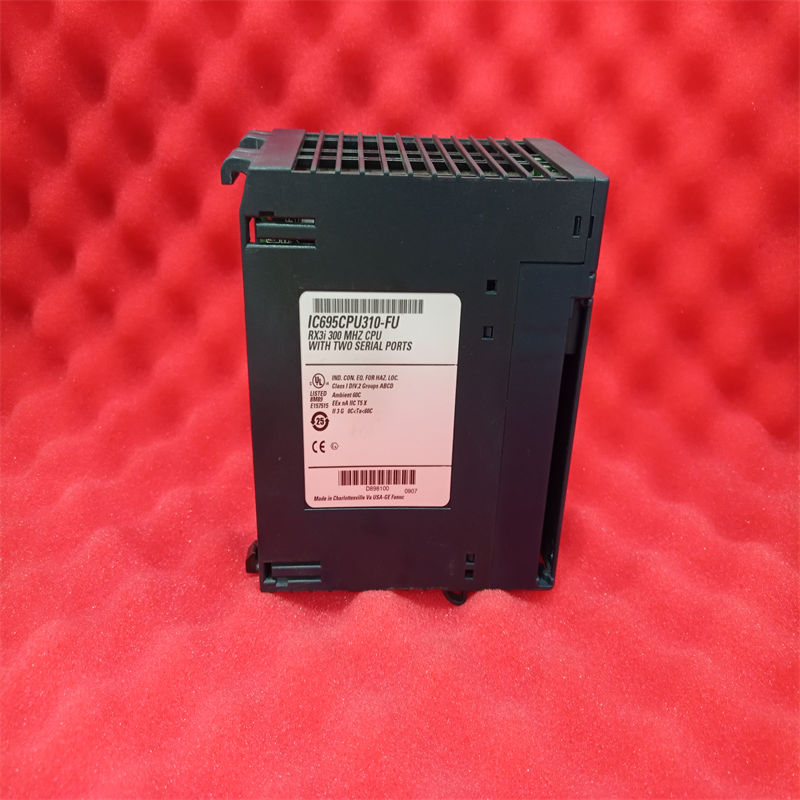

The IC695CPU310 CPU can be used to perform real time control of machines, processes, and material handling systems. The CPU communicates with the programmer and HMI devices via a serial port using SNP Slave protocol. It communicates with I/O and Intelligent Option modules over a dual backplane bus that provides High-speed for PCI backplane for fast throughput of new advanced I/O, and Serial backplane for easy migration of existing Series 90-30 I/O.
Features:
■ Contains 10 Mbytes of battery-backed user memory and 10 Mbytes of non-volatile flash user memory.
■ Configurable data and program memory.
■ Programming in Ladder Diagram, Structured Text, Function Block Diagram, and C.
■ Supports auto-located Symbolic Variables that can use any amount of user memory.
■ Supports most Series 90-30 modules and expansion racks.
■ Supports up to 512 program blocks. Maximum size fora block is 128KB.
■ In-system upgradeable firmware.
■ Two serial ports: RS-485 serial port and RS-232.
■ Ethernet communications via the rack-based Ethernet Interface module (IC695ETM001).
■ Time synchronization to SNTP Time Server on Ethernet network when used with an Ethernet module with firmware release 5.0 or later.
