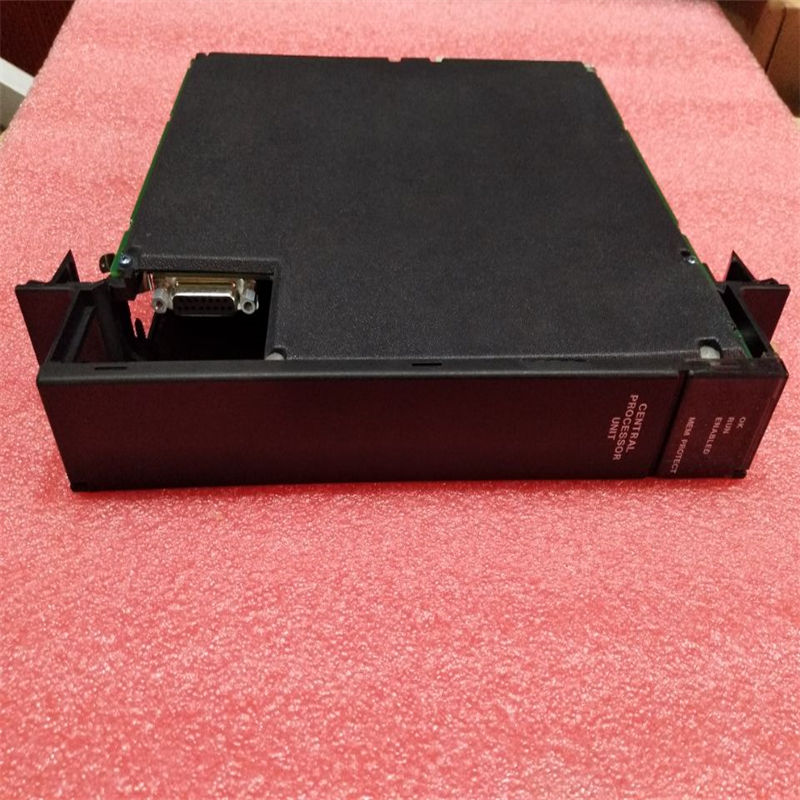

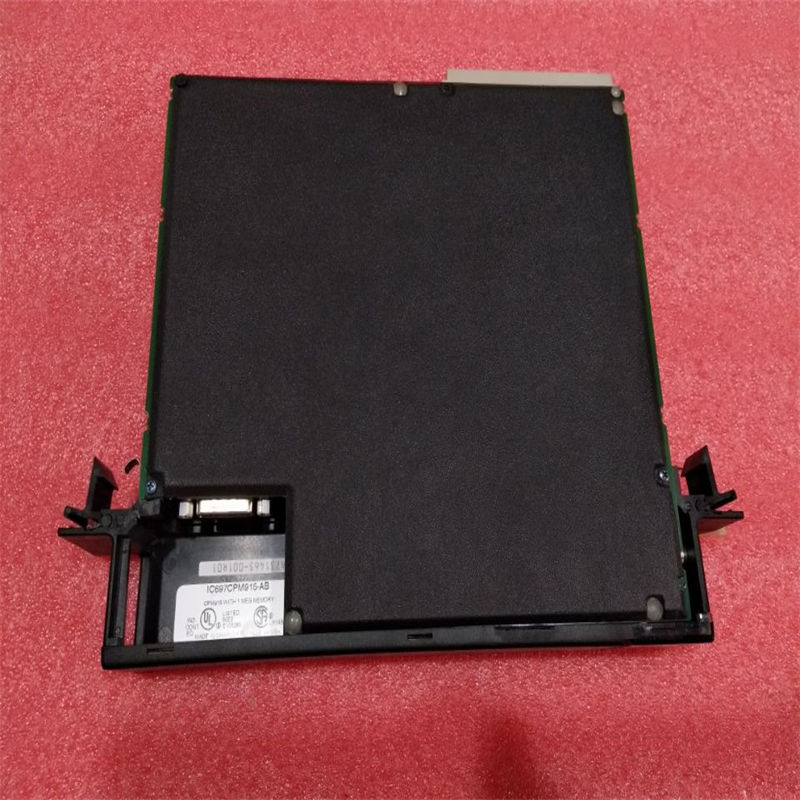

The CPM 915 Central Processing Unit (CPU) is a single slot programmable controller CPU which allows floating point calculations. The CPM915 is programmed and configured by MS-DOS or WIndows based programming software to perform real time control of machines, processes and material handling systems. It communicates with I/O and smart option modules over the rack mounted backplane (IC697CHS750, 782, 783, 790, 791) by way of the VME C.1 Standard format. Supported option modules include all IC697 LAN interface modules, several Coprocessor modules, Bus Controller for IC660/IC661 I/O, Communications mod-compatible computer to the serial port of the module and running the Loader software included with the firmware floppy disk.
Features:
▪ Single slot CPU
▪ Provides 1 Mbyte of battery-backed memory in the same slot
▪ Supports floating point calculations
▪ 12K inputs and outputs (any mix)
▪ Up to 8K analog I/O
▪ 0.4 microseconds per boolean function
▪ 32 MHz, 80486DX microprocessor
▪ Supports IC660/IC661 and IC697 I/O)
▪ Programmed by MS-DOS or Windows software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port.
▪ Configurable data and program memory
▪ Battery-backed calendar clock
▪ Three position operation mode switch
▪ Password controlled access
▪ Remote programmer keyswitch memory protection
▪ Four status LEDs
▪ Software configuration (No DIP switches or jumpers)
▪ Reference information inside front door
▪ In-system upgradable firmware
