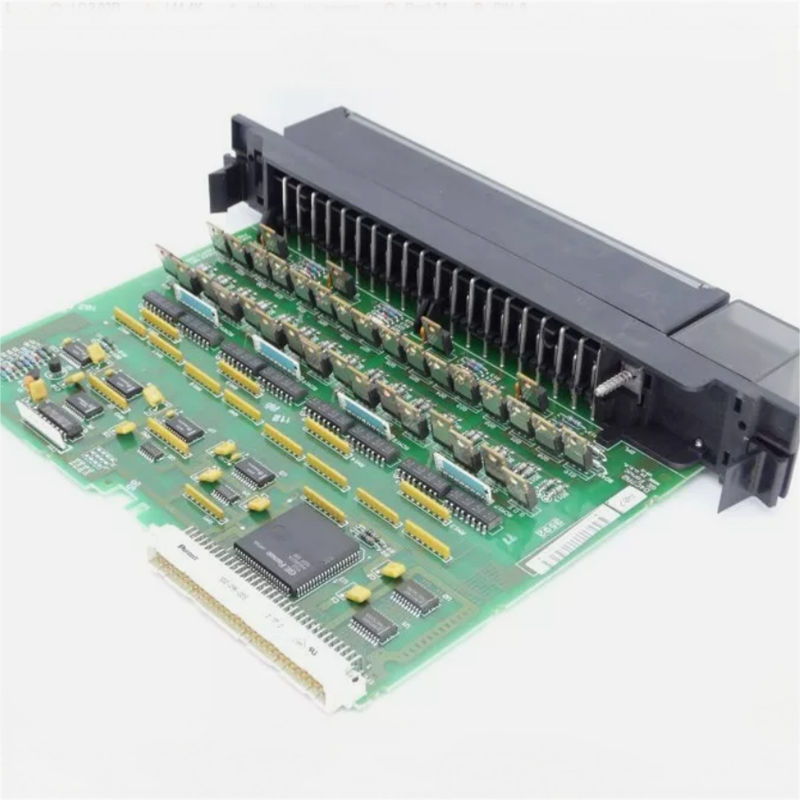

GE FAUNC IC697MDL750 Discrete Output Module

GE FAUNC IC697MDL750 Discrete Output Module

The IC697MDL750 is a GE Discrete Output Module.

  • Item NO.:

    IC697MDL750
  • Payment:

    T/T
  • Market Price:

    $1000
  • Product Origin:

    United States (US)
  • Product weight:

    1kg
  • Lead Time:

    In stock
  • Shipping Port:

    Xiamen
Contact Us:

 » Description

 Manufacture  GE
 Model  IC697MDL750
 Product ID  IC697MDL750
 Catalog  GE FANUC
 Description  IC697MDL750 Discrete Output Module
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC697MDL750



The IC697MDL750 24/48 Volt DC 0.5 Amp Output Module for the Programmable Logic Controller (PLC) provides 32 output points in 4 isolated groups of 8 points each.This output module provides a high degree of inrush current which makes the outputs suitable for a wide range of loads which have such characteristics. LED indicators which give the ON-OFF status of eachpoint on the logic (PLC) side of the circuit are located together at the top of the module. I/O references are user configurable without the use of jumpers or DIP switches on the module. The module is configured using the configuration function of the MS-DOS or Windows® programming software running on Windows 95 or Windows NT® over Ethernet TCP/IP or through the SNP port. The Programming Software configuration function is installed on the programming device. The programming device can be an IBM XT, AT, PS/2® or compatible Personal Computer.
Features:
• 32 Points - Four isolated groups of eight points each
• 0.5 amp capacity per point
• High inrush capacity (20x rated current)

  •  » Datasheet Link

GE FANUC IC697MDL750 Discrete Output Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
