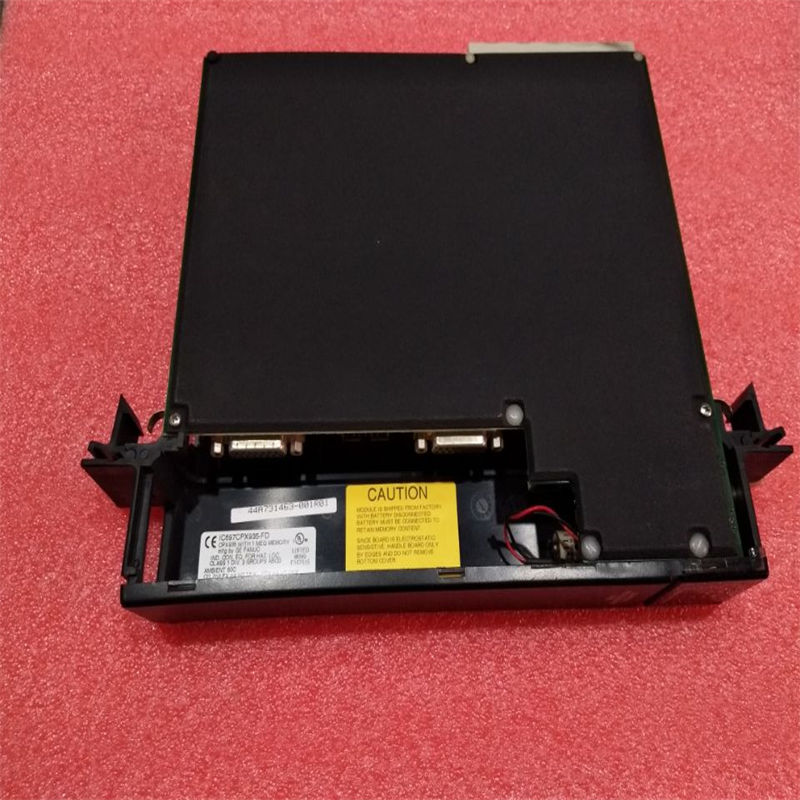

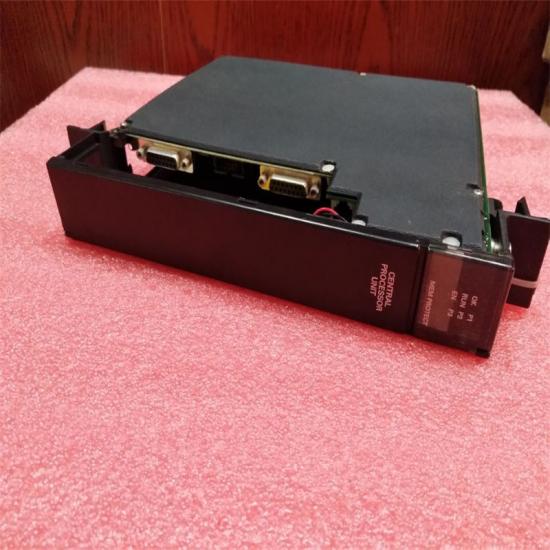

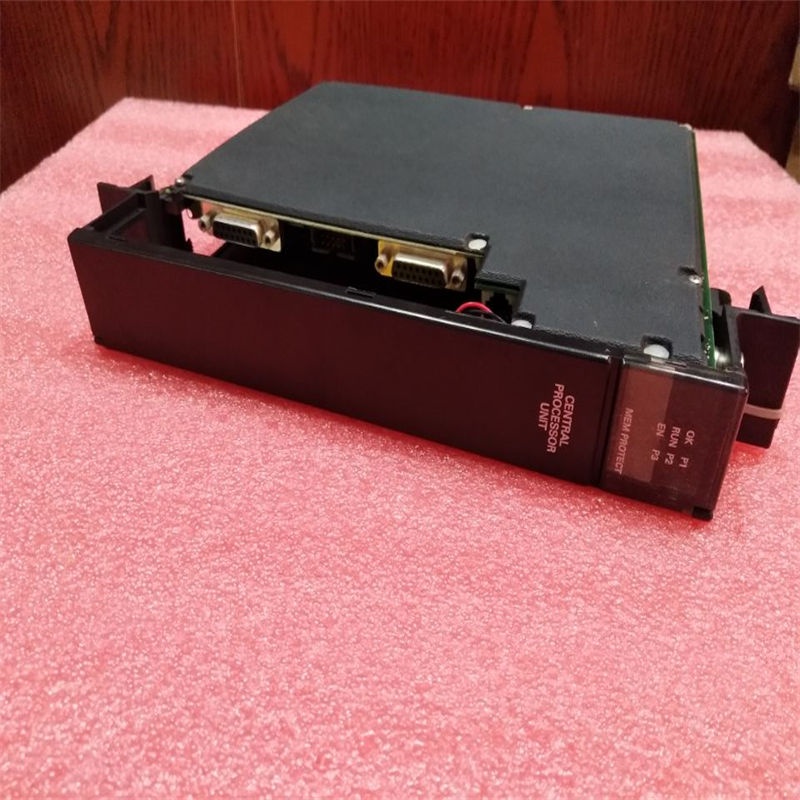

The CPX 935 is a single slot PLC CPU that is programmed and configured by MS-DOS or Windows based programming software to perform real time control of machines, processes, and material handling systems. It communicates with I/O and smart option modules over a rack mounted backplane using the VME C.1 Standard format. Supported option modules include LAN Interface modules, Programmable Coprocessor, Alphanumeric Display Coprocessor, Bus Controller for IC660/661 I/O products, Communications modules, I/O Link Interface, and all of the IC697 family of discrete and analog I/O modules
Features:
▪ Single slot CPU with three serial ports
▪ Provides 1 Mbyte of battery-backed memory in the same slot
▪ Contains 256K of non-volatile user flash memory
▪ Supports BMA in release 7.92 and later
▪ Supports floating point calculations
▪ 12K inputs and outputs (any mix), and up to 8K analog I/O
▪ 0.4 microseconds per boolean function
▪ 96 MHz, 80486DX4 microprocessor
▪ Supports IC66 (can be IC660 or IC661) and IC697 I/O
▪ Programmed by MS-DOS software products, or Windows based software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through an SNP port
▪ Configurable data and program memory
▪ Battery-backed calendar clock
▪ Three position operation mode switch
▪ Password controlled access
▪ Remote programmer keyswitch memory protection
▪ Seven status LEDs
▪ Software configuration (No DIP switches or jumpers)
▪ Reference information inside front door
▪ In-system upgradable firmware
