GE FAUNC IC697CPU782 CPU

IC697CPU782

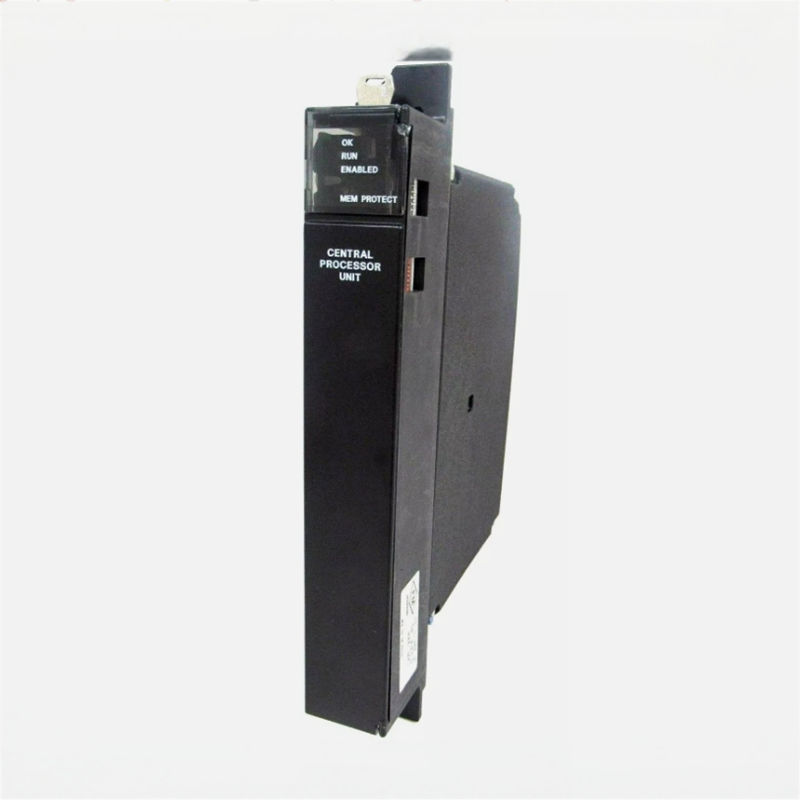

GE FAUNC IC697CPU782 CPU

The IC697CPU782 is a GE CPU Module.

  • Item NO.:

    IC697CPU782

  • Payment:

    T/T

  • Market Price:

    $1000

  • Product Origin:

    United States (US)

  • Product weight:

    1kg

  • Lead Time:

    In stock

  • Shipping Port:

    Xiamen
Inquire Now
Contact Us:

 » Description
 Manufacture  GE
 Model  IC697CPU782
 Product ID  IC697CPU782
 Catalog  GE FANUC
 Description  IC697CPU782 CPU
 Origin  United States (US)
 Dimension  34 mm x 145 mm x 140 mm
 Weight  1kg



IC697CPU782



The CPU 782 is a single slot programmable controller CPU which allows floating point calculations. The CPU782 is programmed and configured by MS-DOS or Windows based programming software to perform real time control of machines, processes and material handling systems. The CPU 782 communicates with I/O and smart option modules over the rack mounted backplane (IC697CHS750, 782, 783, 790, 791) by way of the VME C.1 Standard format. Supported option modules include all IC697 LAN interface modules, several Coprocessor modules, Bus Controller for IC660/IC661 I/O, Communications modules, and all of the IC697 family of discrete and analog I/O modules. Program and data memory for the CPU 782 is available by the attachment of an expansion memory board with either 128, 256 or 512 KBytes of battery-backed CMOS RAM, or 256 KBytes w/256 KBytes of Non-volatile flash. Operation of this module may be controlled by the three position RUN/STOP switch or remotely by an attached programmer and programming software. Program and configuration data can be locked through software passwords or manually by the memory protect keyswitch. When the key is in the protected position, program and configuration data can only be changed by a programmer connected parallel only(i.e., via the Bus Transmitter module). The status of the CPU is indicated by the four green LEDs on the front of the module.
Features:
▪ Supports floating point calculations
▪ Single slot CPU.
▪ 12K inputs and outputs (any mix).
▪ Up to 8K analog I/O.
▪ 0.4 microseconds per boolean function.
▪ 16 MHz, 80386DX microprocessor.
▪ Supports IC660/IC661 and IC697 I/O products.
▪ Programmed by MS-DOS or Windows software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port.
▪ Supports up to 512 Kbytes of battery-backed expansion memory in the same slot.
▪ Configurable data and program memory.
▪ Battery-backed calendar clock.
▪ Three position operation mode switch.
▪ Password controlled access.
▪ Keyswitch memory protection
▪ Four status LEDs.
▪ Software configuration (No DIP switches or jumpers to set).
▪ Reference information inside front door


  •  » Datasheet Link

GE FANUC IC697CPU782 CPU Datasheet
