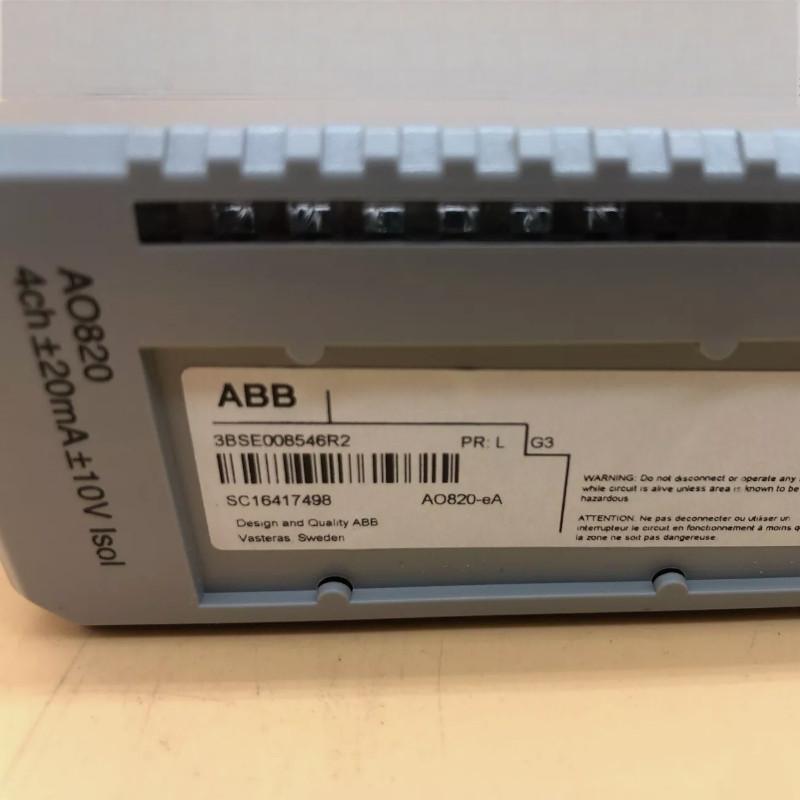

The ABB AO820-EA 3BSE008546R2 is an analog output module.
Item NO.:
AO820-EA 3BSE008546R2Payment:
T/TMarket Price:
$650Product Origin:
Estonia (EE)/United States (US)Product weight:
0.18kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | AO820-EA |
| Product ID | 3BSE008546R2 |
| Catalog | Advant 800xA |
| Description | AO820-EA 3BSE008546R2 Analog Output Module |
| Country of Origin | Estonia (EE)/United States (US) |
| Dimension | 102mm*45mm*119mm |
| Weight | 0.18kg |
The ABB AO820-EA 3BSE008546R2 is an Analog Output Module produced by ABB, a leading industrial automation company. It's designed to provide analog output signals to control devices in industrial automation applications.
Here are some key features of the ABB AO820-EA 3BSE008546R2 Analog Output Module:
1. Number of Channels: The module supports 8 analog output channels, allowing you to control multiple devices simultaneously.
2. Output Range: It supports a wide range of output voltage or current signals, such as 0-10V DC, 4-20mA, or custom ranges depending on your application requirements.
3. Resolution and Accuracy: The module offers high resolution and accuracy, ensuring precise control of the output signals.
4. Diagnostic Capabilities: It provides comprehensive diagnostic features to help monitor and troubleshoot the module's performance. This includes channel status, fault indication, and voltage/current monitoring.
5. Redundancy: The AO820-EA module supports redundancy, allowing for increased system reliability. Redundant configurations ensure continuous operation even if one module fails.
6. Configuration and Communication: The module can be configured and programmed using ABB's engineering tools, such as Control Builder or Automation Builder. It supports communication protocols like PROFIBUS DP, Modbus, or Foundation Fieldbus for seamless integration into your automation network.
7. Environmental Ratings: The module is designed to operate in various industrial environments and is compliant with relevant industry standards for temperature, humidity, and electrical noise immunity.
|
ABB AO820-EA 3BSE008546R2 Analog Output Module Datasheet
