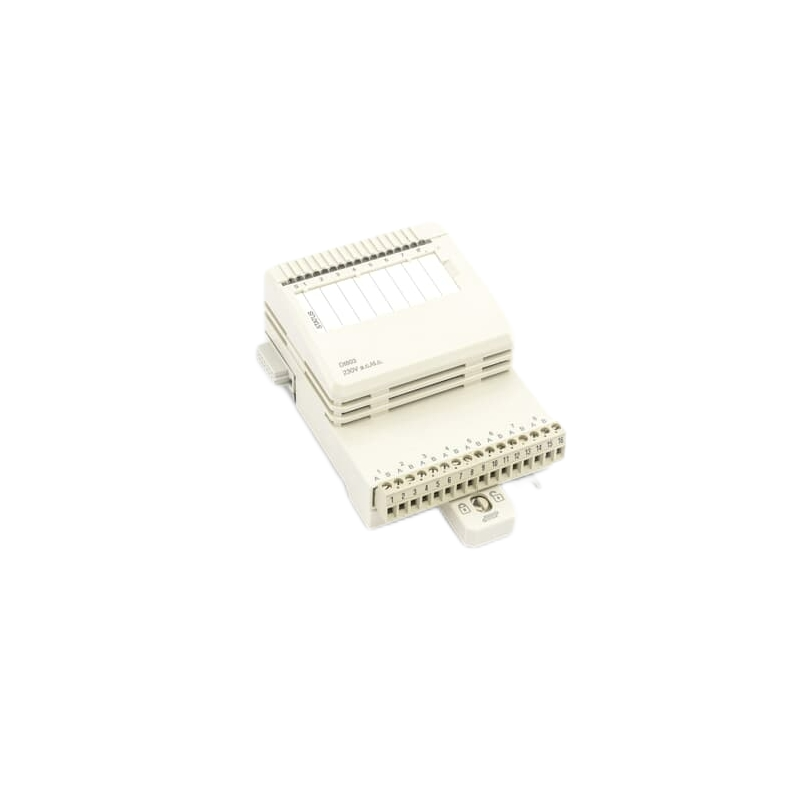

The DI803 3BSE022362R1 is a digital input Module manufactured by ABB.
Item NO.:
DI803 3BSE022362R1Payment:
T/TMarket Price:
$400Product Origin:
Germany (DE) / Spain (ES)/ United States(US)Product weight:
0.24kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | DI803 |
| Product ID | 3BSE022362R1 |
| Catalog | Advant 800xA |
| Description | DI803 3BSE022362R1 Digital Input Module |
| Country of Origin | Germany (DE) / Spain (ES)/ United States(US) |
| Dimension | 58.5mm*86.1mm*110mm |
| Weight | 0.24kg |
The DI803 is an 8 channel 230 V a.c./d.c. digital input module for the S800 I/O. This module has 8 digital inputs. The a.c. input voltage range is 164 - 264 volt and the input current is 7.6 mA at 230 V a.c. The d.c. input range is 175 - 275 V and the input current is 1.6 mA at 220 V. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier.
Features and benefits:
1. 8 channels for 230 V a.c./d.c. inputs with current sinking
2. Individually isolated channels
3. Voltage supervision of field input power
4. Input status indicators
5. Signal filtering
6. Process connection via detachable connectors
|
ABB DI803 3BSE022362R1 Digital Input Module Datasheet
