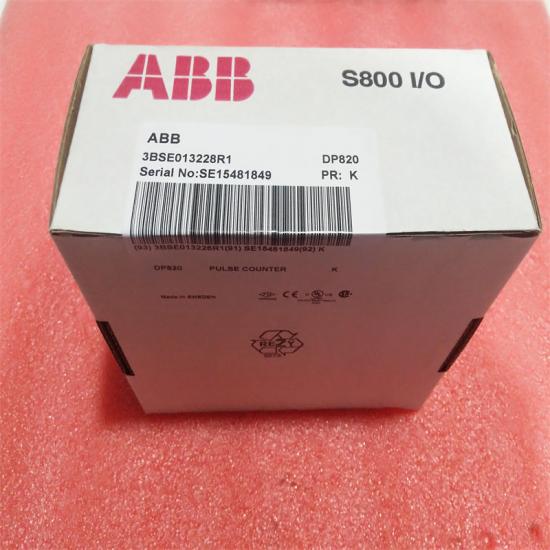

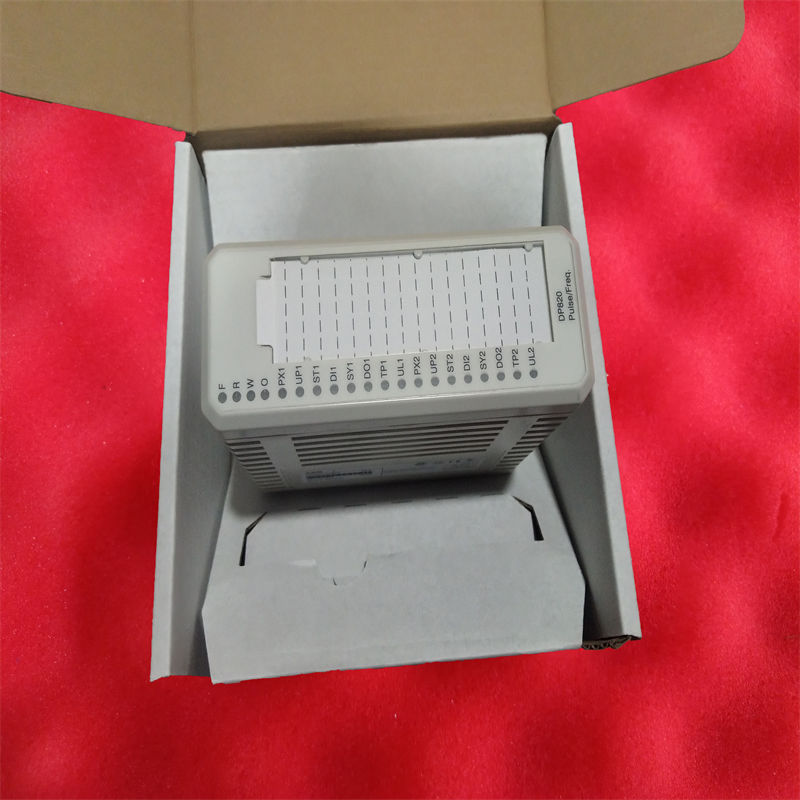

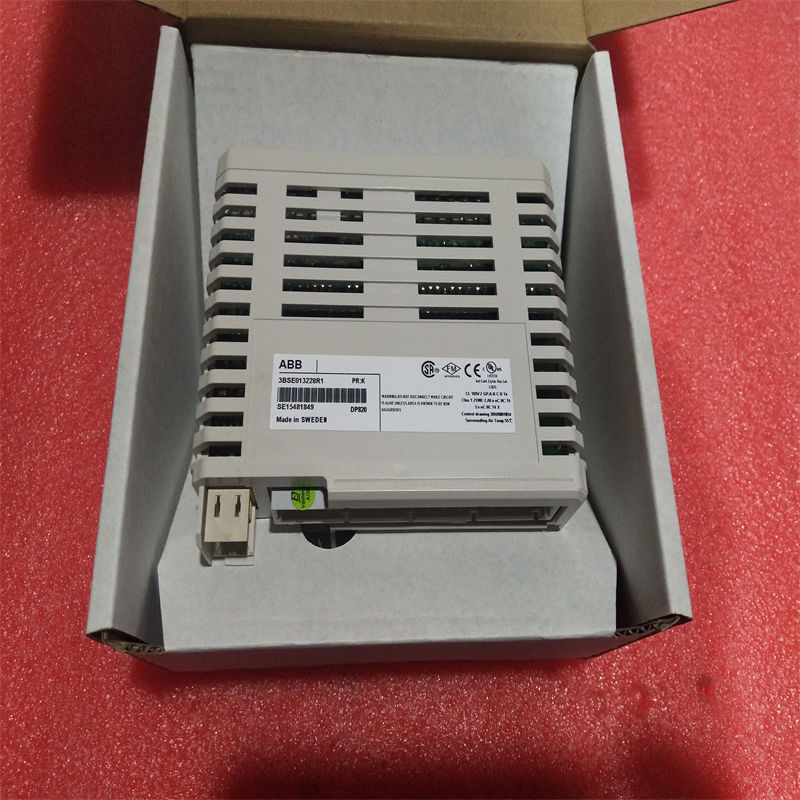

The DP820 3BSE013228R1 is a Pulse Counter manufactured by ABB.
Item NO.:
DP820 3BSE013228R1Payment:
T/TMarket Price:
$600Product Origin:
China（CN）Product weight:
0.15kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | DP820 |
| Product ID | 3BSE013228R1 |
| Catalog | Advant 800xA |
| Description | DP820 3BSE013228R1 Pulse Counter |
| Country of Origin | China(CN) |
| Dimension | 102mm*45mm*119mm |
| Weight | 0.15kg |
The ABB DP840 3BSE020831R1 Pulse Counter Module is a digital input module designed for pulse counting applications. It is used to measure and count the number of pulses generated by external devices or sensors. The module provides high-speed pulse counting capability and reliable performance in industrial automation systems.
The DP840 module supports various counting modes, including up/down counting and quadrature counting. It can handle different types of input signals, such as square wave signals, pulse trains, and encoder signals. The module offers flexibility in configuring counting parameters, such as counting frequency, input filtering, and signal edge detection.
With its robust design and industrial-grade components, the DP840 module ensures accurate pulse counting even in harsh operating conditions. It is compatible with ABB's Advant Controller 400 series and AC 800M controllers, enabling seamless integration into existing control systems.
The DP840 module provides real-time pulse count information to the control system, allowing precise monitoring and control of processes that require accurate pulse counting, such as flow measurement, speed control, and position sensing. It simplifies the implementation of pulse counting functions and enhances the overall efficiency and reliability of industrial automation systems.
|
ABB DP820 3BSE013228R1 Pulse Counte Datasheet
