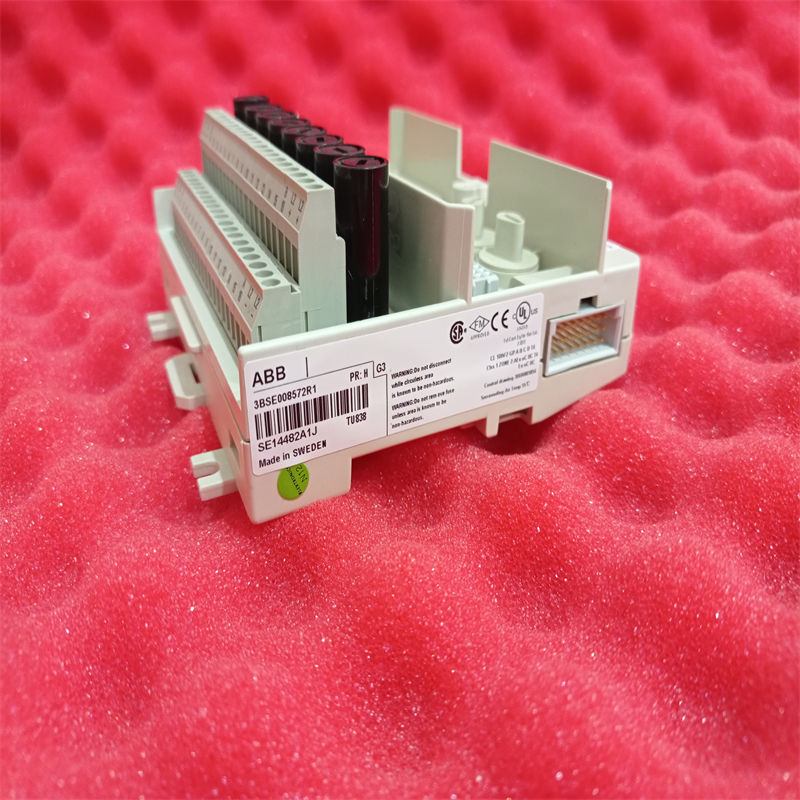

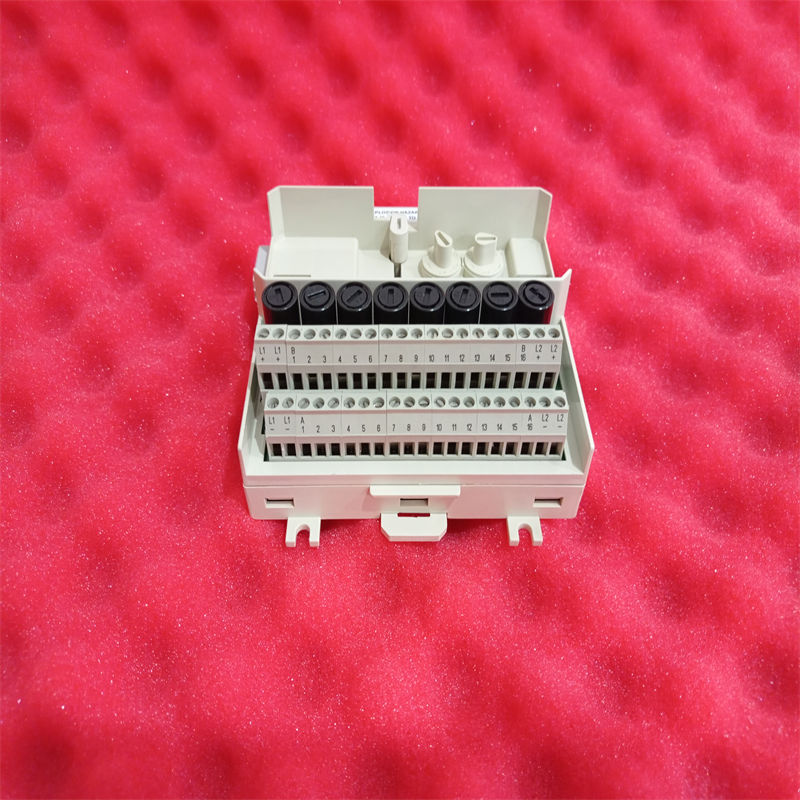

The TU838 is a 16 channels compact module termination unit (MTU) for the S800 I/O.
Item NO.:
TU838 3BSE008572R1Payment:
T/TMarket Price:
$300Product Origin:
Germany (DE) / Spain (ES)/ United States(US)Product weight:
0.26kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | TU838 |
| Product ID | 3BSE008572R1 |
| Catalog | Advant 800xA |
| Description | TU838 Compact MTU |
| Country of Origin | Germany (DE) / Spain (ES)/ United States(US) |
| Dimension | 126mm*64mm*110mm |
| Weight | 0.26kg |
The TU838 MTU can have up to 16 I/O channels. The maximum rated voltage is 50 V and maximum rated current is 3 A per channel. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
Features and benefits：
1. Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.
2. Up to 16 channels of field signals and 8 process power connections.
3. Two channels share one fused transducer power terminal.
4. Process voltage can be connected to 2 individually isolated groups, if the I/O module supports it.
5. Connections to ModuleBus and I/O modules.
6. Mechanical keying prevents insertion of the wrong I/O module.
7. Latching device to DIN rail for grounding.
8. DIN rail mounting.
|
ABB TU838 3BSE008572R1 Compact MTU Datasheet
