The TU847 is a compact module termination unit (MTU) for the S800 I/O.
Item NO.:
TU847 3BSE022462R1Payment:
T/TMarket Price:
$400Product Origin:
Germany (DE) / Spain (ES)/ United States(US)Product weight:
0.5kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | TU847 |
| Product ID | 3BSE022462R1 |
| Catalog | Advant 800xA |
| Description | TU847 Compact MTU |
| Country of Origin | Germany (DE) / Spain (ES)/ United States(US) |
| Dimension | 124mm*186mm*47mm |
| Weight | 0.5kg |

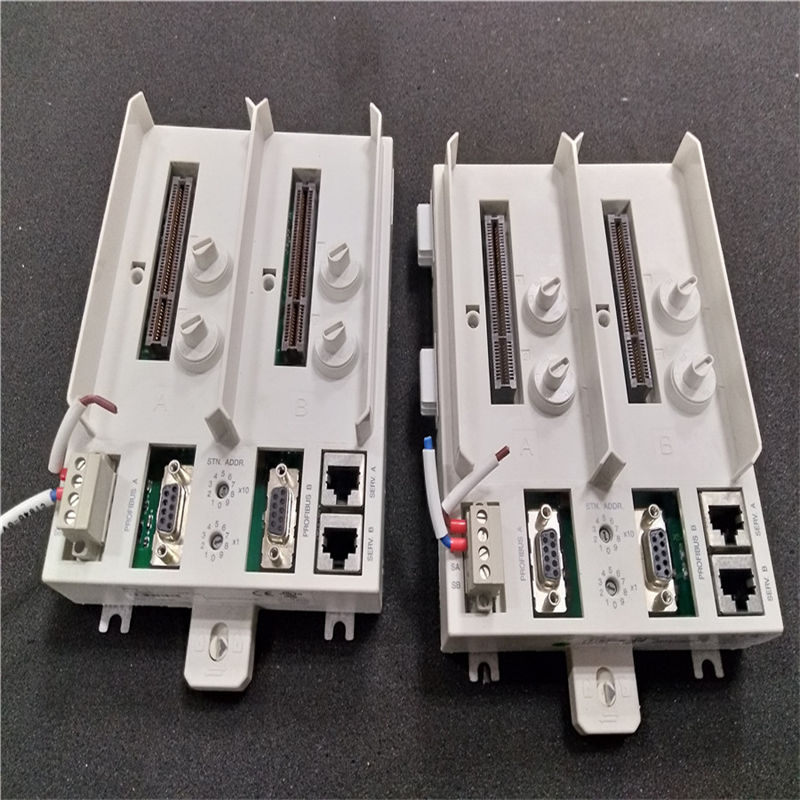

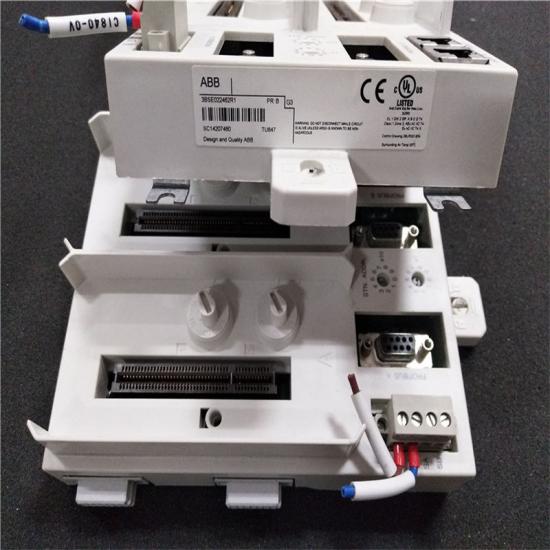

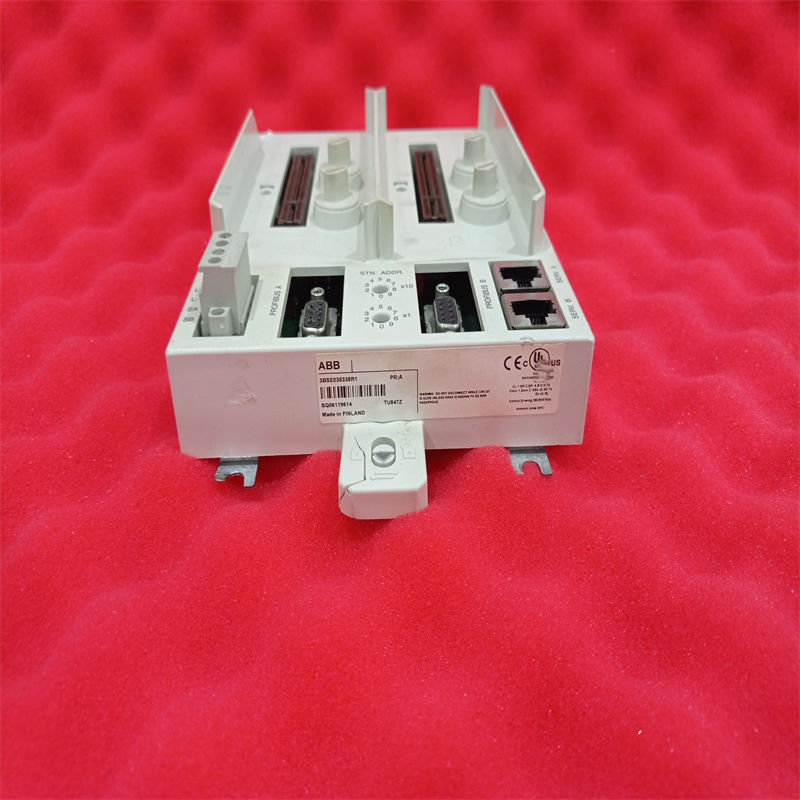

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806. Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z).
Features and benefits：
1. Power supply connection.
2. Two PROFIBUS connections.
3. Two service tool connections.
4. Two rotary switch for station address setting.
5. ModuleBus connections.
6. Connector for ModuleBus Optical Port. Mechanical keying prevents insertion of the wrong module type.
7. Latching device to DIN rail for locking and grounding.
8. DIN rail mounted.
|
ABB TU847 3BSE022462R1 Compact MTU Datasheet
Warranty
Delivery Time
The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input.
check the details
The AI801 Analog Input Module has 8 channels for current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage.
check the details
CI801 Fieldbus Communication Interface (FCI) module
check the details
For redundant communication interface two CI840A, and one TU847 or one TU846 must be ordered.
check the details
For redundant configuration two Fieldbus Communication Interfaces CI845, two Ethernet Adapters TC810 and one TU860 or one TU865 are needed. For Select I/O High Integrity SIL3 one HI880 is needed.
check the details
The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O.
check the details
The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs).
check the details
The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements.
check the detailsSignup our newsletter to get update information, promotion and insight.
