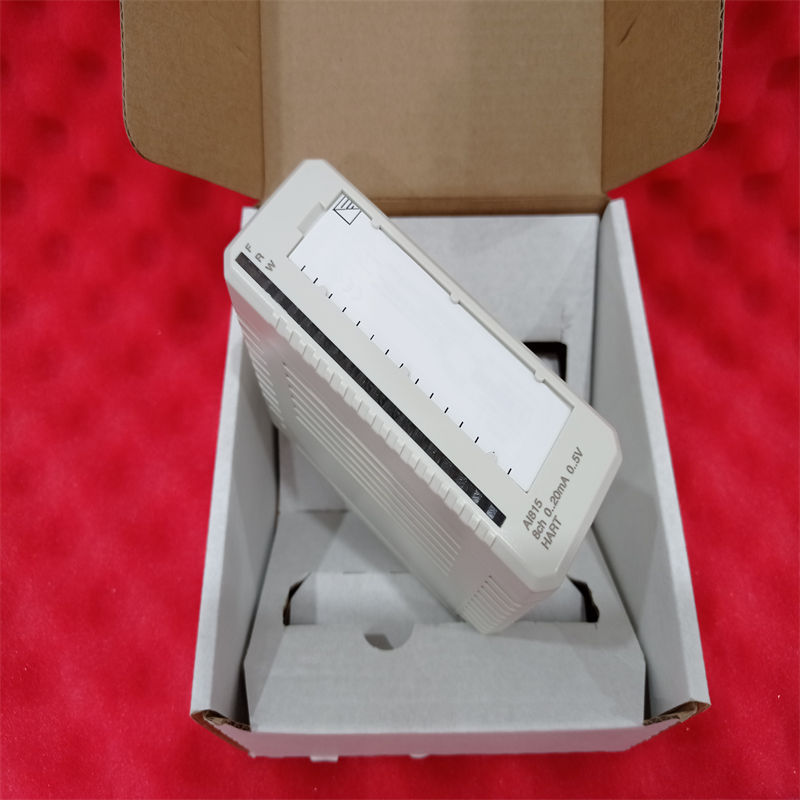

The ABB AI815 3BSE052604R1 is a 1-channel analog input module.
Item NO.:
AI815 3BSE052604R1Payment:
T/TMarket Price:
$500Product Origin:
Germany (DE) / Spain (ES)/ United States(US)Product weight:
0.23kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | AI815 |
| Product ID | 3BSE052604R1 |
| Catalog | Advant 800xA |
| Description | AI815 3BSE052604R1 Analog Input Module |
| Country of Origin | Germany (DE)/Spain (ES)/United States (US) |
| Dimension | 102mm*45mm*119mm |
| Weight | 0.23kg |
The ABB AI815 3BSE052604R1 is a 1-channel analog input module. It is designed to interface with various field devices and sensors, converting analog signals into digital values that can be processed by a control system or a PLC (Programmable Logic Controller).
Here are some key features of the ABB AI815 module:
1. It supports a wide range of input signals, including voltage, current, resistance, and temperature.
2. The module provides excellent accuracy and resolution, allowing for precise measurement of analog signals.
3. It has built-in diagnostics and self-check features, enabling early detection of issues or faults in the module or the connected field device.
4. The module is hot-swappable, meaning it can be replaced or added to the system without interrupting the operation of other modules.
5. It supports various communication protocols, making it compatible with different control system architectures.
|
ABB AI815 3BSE052604R1 Analog Input Module Datasheet
