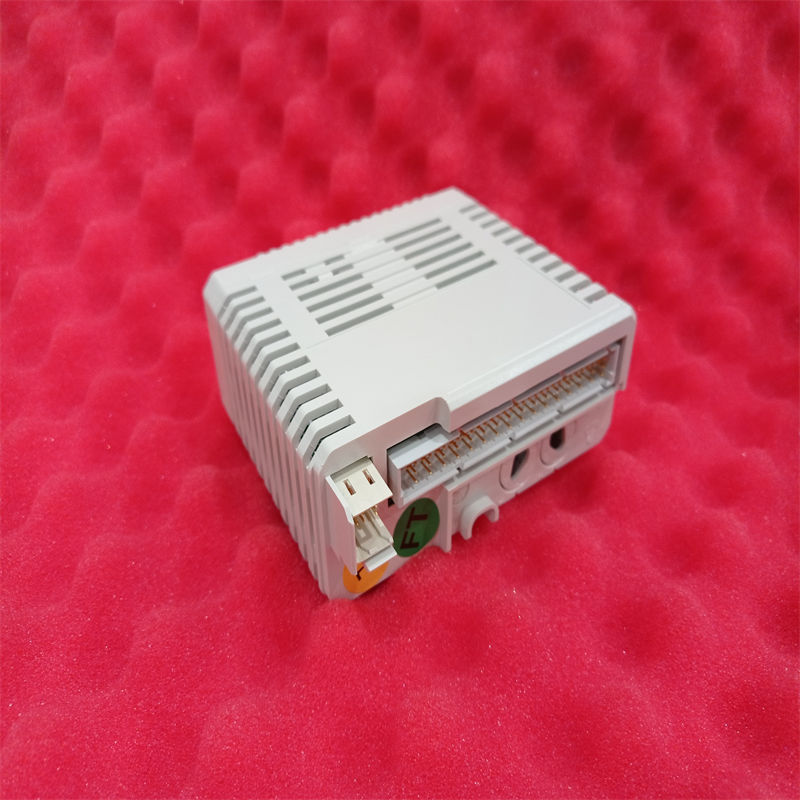

The ABB AI830 (3BSE008518R1) is an analog input module.
Item NO.:
AI830 3BSE008518R1Payment:
T/TMarket Price:
$500Product Origin:
Estonia (EE)Product weight:
0.22kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | AI830 |
| Product ID | 3BSE008518R1 |
| Catalog | Advant 800xA |
| Description | AI830 3BSE008518R1 Analog Input Module |
| Country of Origin | Estonia (EE) |
| Dimension | 102mm*45mm*119mm |
| Weight | 0.22kg |
The ABB AI830 (3BSE008518R1) is an analog input module designed for use in ABB's AC 800M series of programmable logic controllers (PLCs). It provides high-precision, high-resolution analog input channels for monitoring and control applications.
Key features of the AI830 module include:
1. Channel Configuration: The module supports configuration with up to eight individual analog input channels.
2. Input Types: The AI830 module supports a wide range of analog input types, including voltage, current, and thermocouples.
3. Signal Resolution: The module offers high-resolution monitoring with a 16-bit analog-to-digital conversion, allowing for precise measurement and control of input signals.
4. Signal Conditioning: The AI830 module includes analog signal conditioning circuitry to ensure accurate measurement and filtration of input signals.
5. Channel Isolation: Each analog input channel of the AI830 module is electrically isolated, providing protection against ground loops and noise interference.
6. Diagnostic Features: The module incorporates diagnostic features to detect and report faults, such as broken wire detection and measurement range monitoring.
7. Hot Swapping: The AI830 module supports hot swapping, allowing for replacement or addition of modules while the system is still in operation. This feature helps to minimize system downtime.
8. Communication Interface: The AI830 module communicates with the AC 800M PLC via the ModuleBus interface.
|
ABB AI830 3BSE008518R1 Analog Input Module Datasheet
