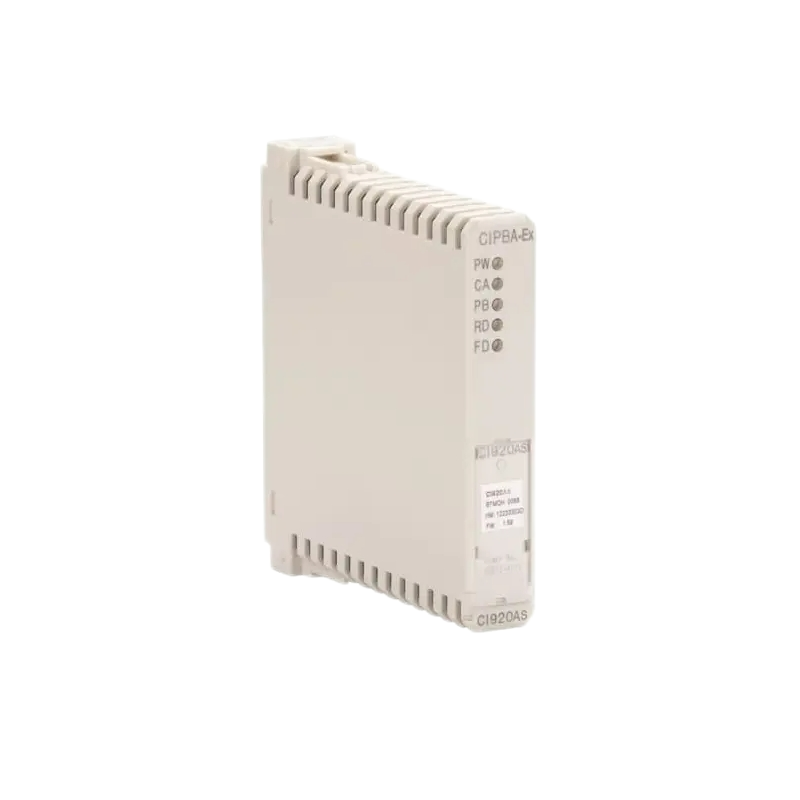

The CI920AS 3BDH000690R1 is a communicaiton Interface manufactured by ABB.
Item NO.:
CI920AS 3BDH000690R1Payment:
T/TMarket Price:
$1500Product Origin:
Germany (DE) / United States(US)Product weight:
0.14kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | CI920AS |
| Product ID | 3BDH000690R1 |
| Catalog | Advant 800xA |
| Description | CI920AS 3BDH000690R1 Communication Interface |
| Country of Origin | Germany (DE)/ United States(US) |
| Dimension | 104mm*20mm*104mm |
| Weight | 0.14kg |
The CI920AS Communication Interface V 2.1 (CIPBA-Ex), for Fieldbus protocol PROFIBUS DP-V1 (IEC 61158). Use only CI920AS with the same firmware for redundancy for PROFIBUS DP-V1.
Features and benefits
• ATEX Certification for installation in Zone 1
• Redundancy (Power and Communication)
• Hot Configuration in Run
• Hot Swap functionality
• Extended Diagnostic
• Excellent configuration and diagnostics via FDT/DTM
• G3-coating for all components
• Simplified maintenance with auto-diagnostics
• Fieldbus protocol PROFIBUS DP-V1 (IEC 61158)
• Coupling of the internal CAN bus to external PROFIBUS DP-V1 (IEC 61158)
• HART over PROFIBUS DP-V1
• Line or media redundancy via two coupling modules
• Electrical isolation between fieldbus, power
|
ABB CI920AS 3BDH000690R1 Communication Interface Datasheet
