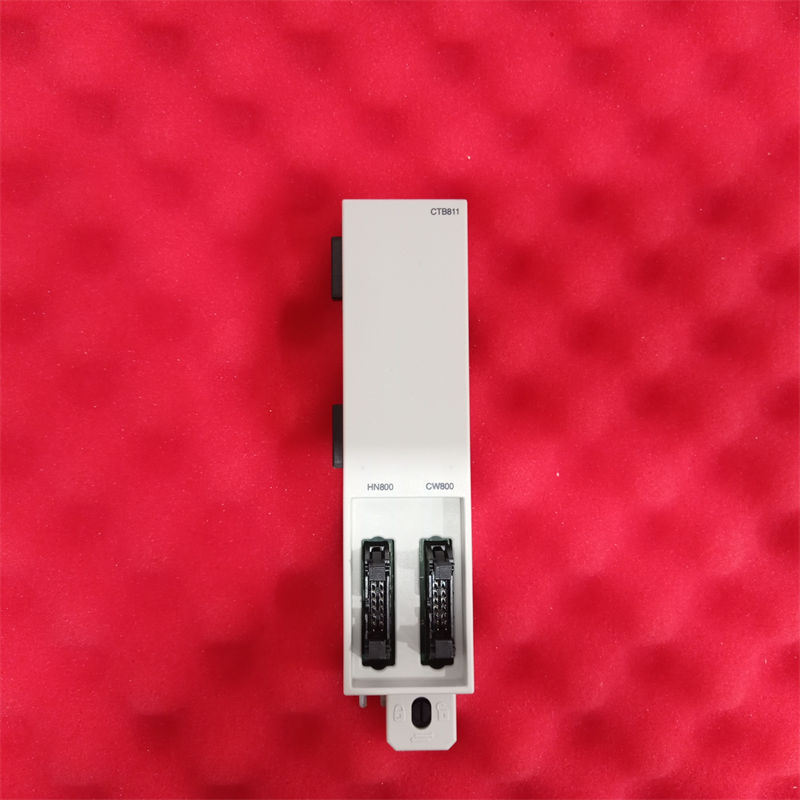

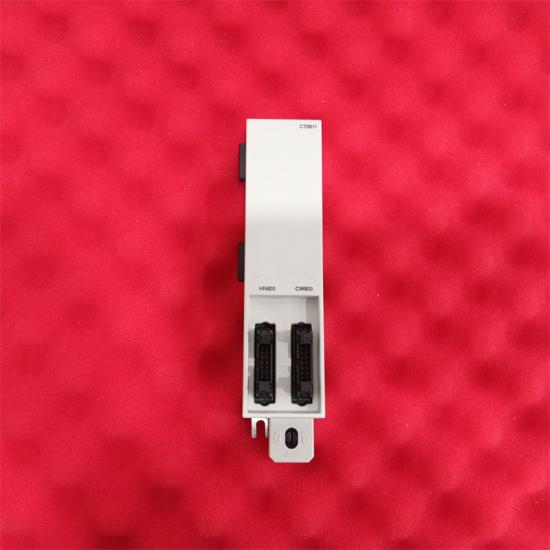

ABB CTB811 HPC800 Communication Terminal Board is an essential component of the ABB HPC800 system.
Item NO.:
CTB811Payment:
T/TMarket Price:
$820Product Origin:
Germany (DE) / Spain (ES)Product weight:
0.88kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | CTB811 |
| Product ID | CTB811 |
| Catalog | Advant 800xA |
| Description | HPC800 Comm.Terminal Board, Right Side |
| Country of origin | Germany (DE) / Spain (ES) |
| Dimension | 243.84mm*73.66mm*170.18mm |
| Weight | 0.88kg |
ABB CTB811 HPC800 Communication Terminal Board is an essential component of the ABB HPC800 system, designed to provide reliable and efficient communication connections. The CTB811 terminal board acts as an interface between the control processor module and external devices, facilitating seamless data exchange and communication within the system.
The CTB811 terminal board features multiple communication ports, including RS485 and Ethernet interfaces, enabling connectivity with various equipment and networks. It allows for flexible configuration and supports high-speed data transfer, ensuring real-time monitoring and control of critical processes.
With its robust construction and high-quality components, the ABB CTB811 HPC800 Communication Terminal Board ensures reliable operation even in harsh industrial environments. It is designed to work seamlessly with the HPC800 system, enabling efficient communication and data integration for improved process control and asset management.
|
ABB CTB811 HPC800 Communication Terminal Board Datasheet PDF
