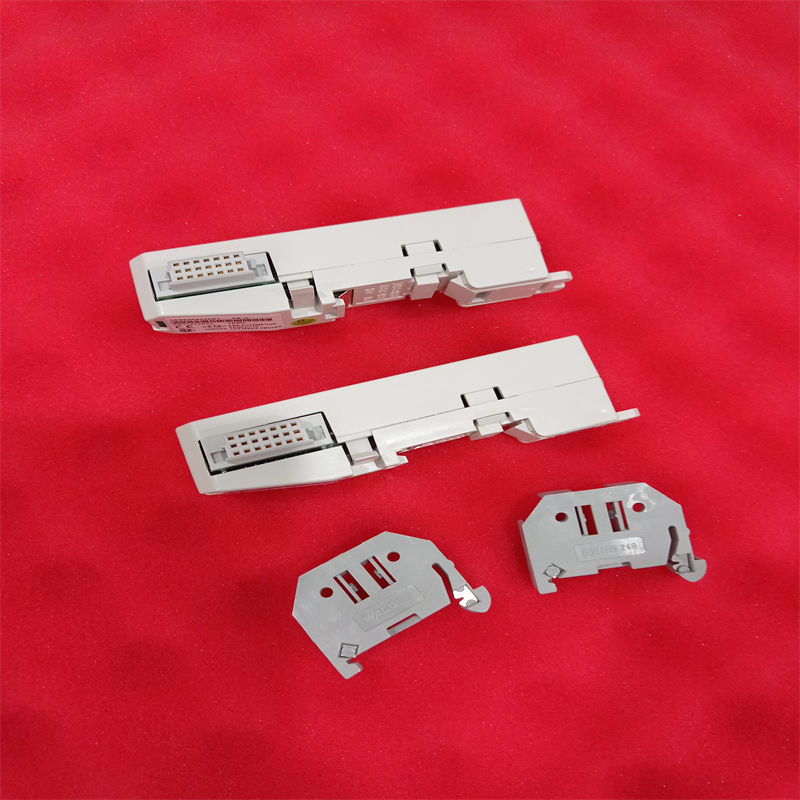

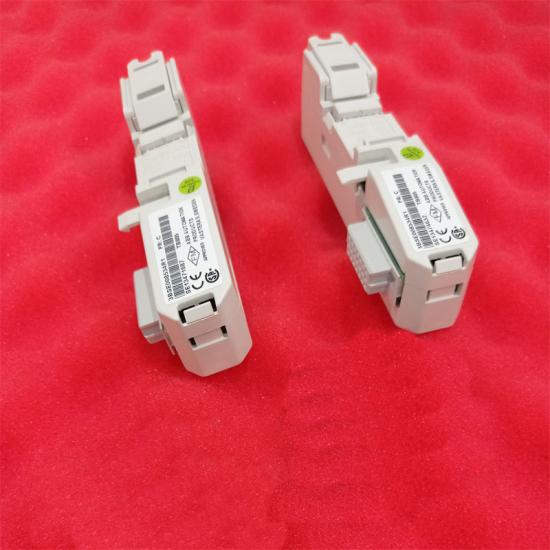

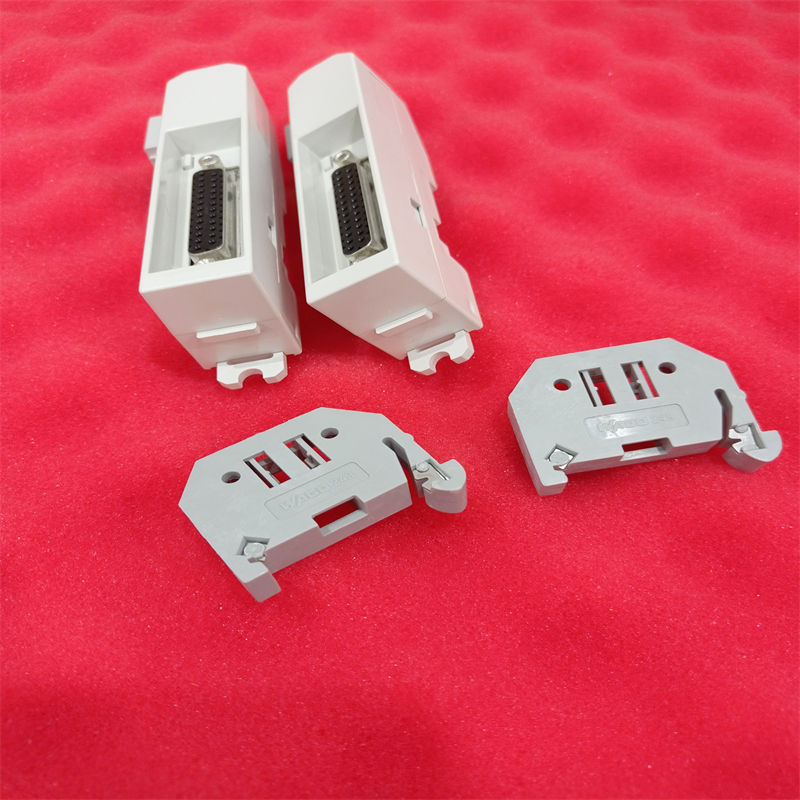

The TB805 3BSE008534R1 is a ModuleBus Cable Adaptor manufactured by ABB.
Item NO.:
TB805 3BSE008534R1Payment:
T/TMarket Price:
$85Product Origin:
Germany (DE) / Spain (ES)/ United States(US)Product weight:
46gLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | TB805 |
| Product ID | 3BSE008534R1 |
| Catalog | Advant 800xA |
| Description | TB805 ModuleBus Cable Adaptor |
| Country of Origin | Germany (DE) / Spain (ES)/ United States(US) |
| Dimension | 22mm*25mm*109mm |
| Weight | 46g |
The TB805 ModuleBus Cable Adaptor is used together with TB806 and TK801V0xx to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails.
ABB TB805 3BSE008534R1 ModuleBus Cable Adaptor Datasheet
