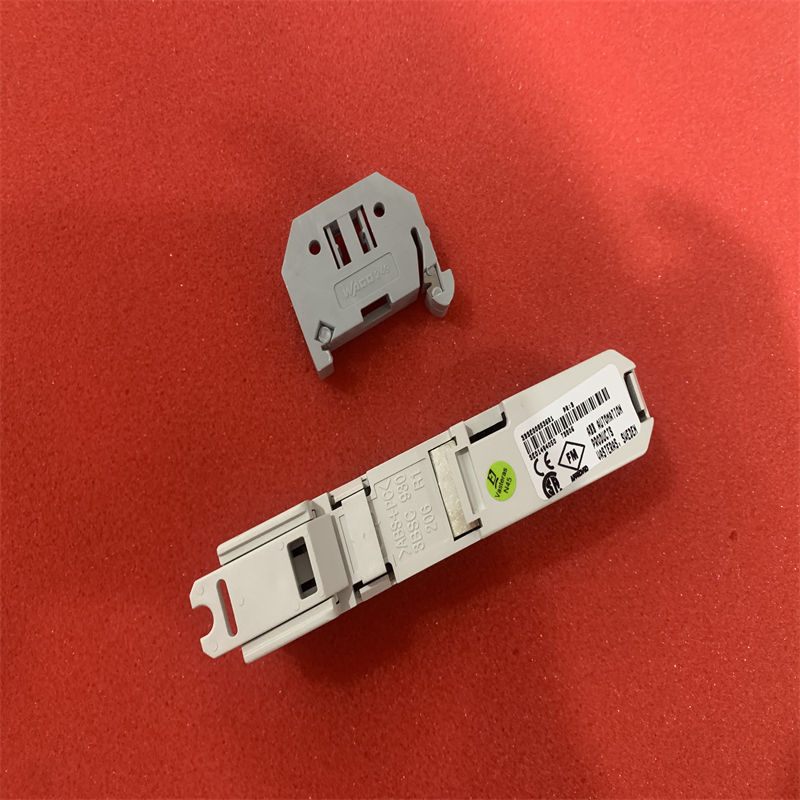

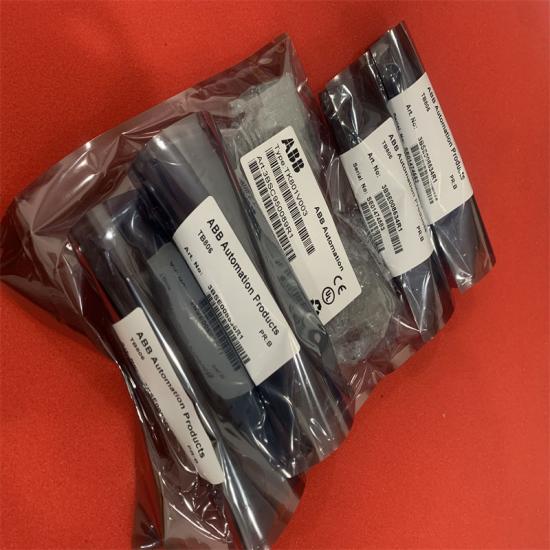

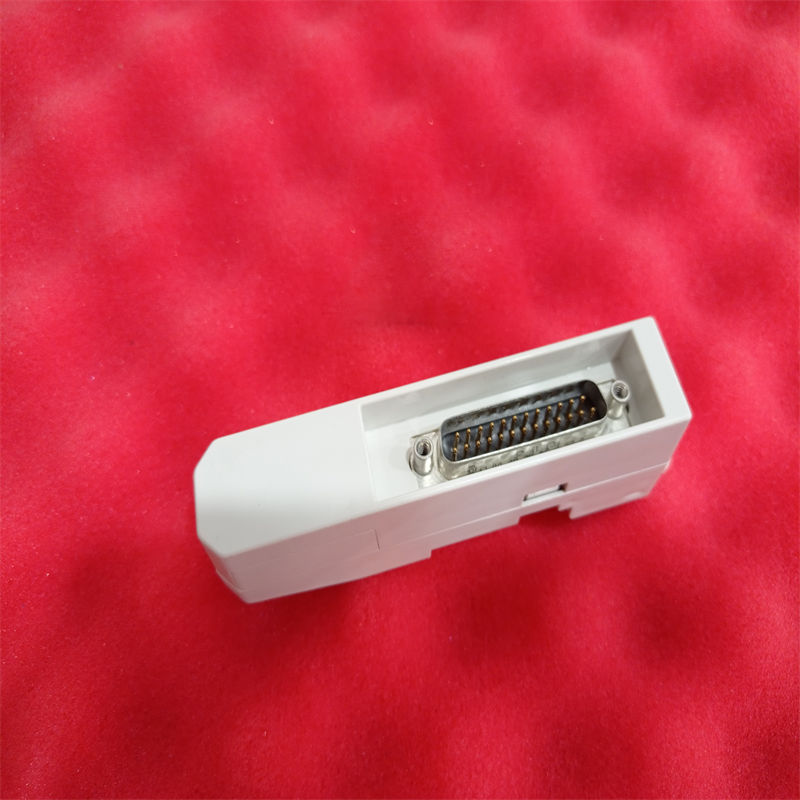

The TB806 3BSE008536R1 is a ModuleBus Cable Adaptor manufactured by ABB.
Item NO.:
TB806 3BSE008536R1Payment:
T/TMarket Price:
$85Product Origin:
Germany (DE) / Spain (ES)/ United States(US)Product weight:
46gLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | TB806 |
| Product ID | 3BSE008536R1 |
| Catalog | Advant 800xA |
| Description | TB806 ModuleBus Cable Adaptor |
| Country of Origin | Germany (DE) / Spain (ES)/ United States(US) |
| Dimension | 22mm*25mm*109mm |
| Weight | 46g |
The TB806 ModuleBus Cable Adaptor is used together with TB805 and TK801V0xx to extend the ModuleBus. Using this extension I/O modules on the same electrical ModuleBus can be mounted on different DIN rails. TB806 can also be used together with TB842 to provide an optical extension of the ModuleBus.
ABB TB806 3BSE008536R1 ModuleBus Cable Adaptor Datasheet
