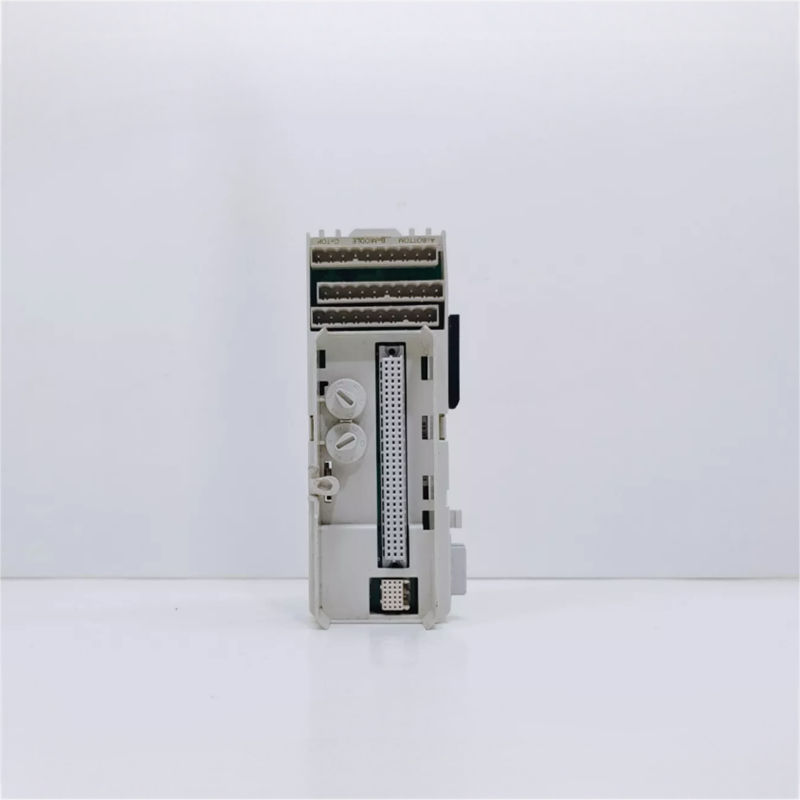

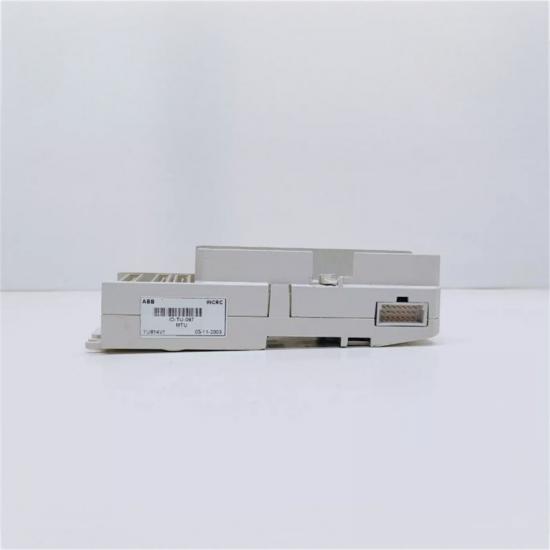

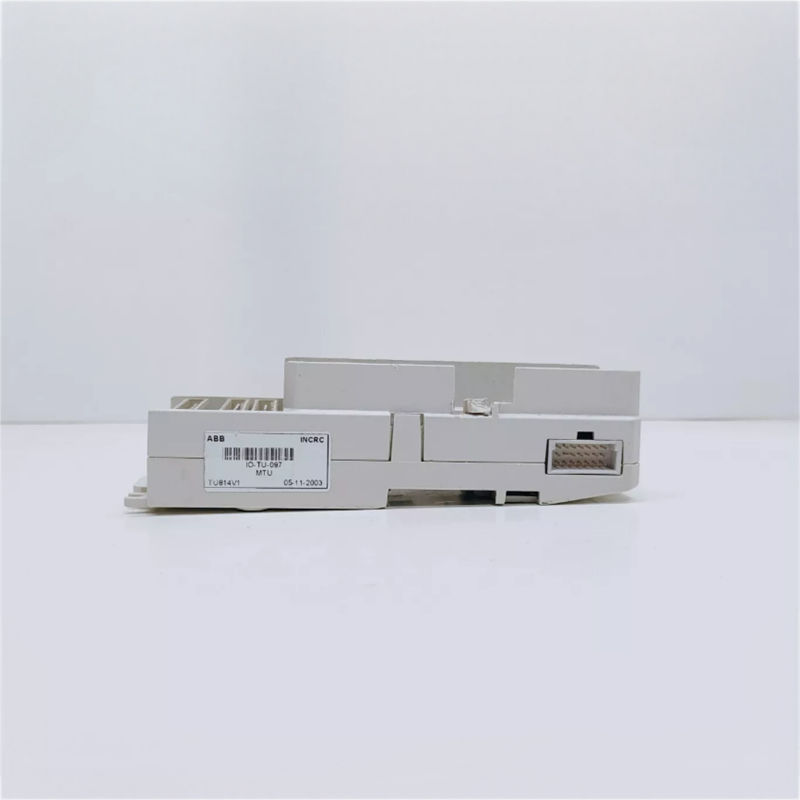

The TU814V1 is a 16 channels compact module termination unit (MTU) for the S800 I/O.
Item NO.:
TU814V1 3BSE013233R1Payment:
T/TMarket Price:
$80Product Origin:
Sweden(SE)Product weight:
0.17kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | TU814V1 |
| Product ID | 3BSE013233R1 |
| Catalog | Advant 800xA |
| Description | TU814V1 Compact MTU |
| Country of Origin | Sweden (SE) |
| Dimension | 64mm*64mm*170mm |
| Weight | 0.17kg |
The TU814V1 MTU can have up to 16 I/O channels and two process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The TU814V1 has three rows of crimp snap-in connectors for field signals and process power connections. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.
Features and benefits：
1. 16 channels for 24 V d.c. inputs with current sourcing
2. 2 Isolated groups of 8 with voltage supervision
3. Input status indicators
|
ABB TU814V1 3BSE013233R1 Compact MTU Datasheet
Warranty
Delivery Time
The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input.
check the details
The AI801 Analog Input Module has 8 channels for current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage.
check the details
CI801 Fieldbus Communication Interface (FCI) module
check the details
For redundant communication interface two CI840A, and one TU847 or one TU846 must be ordered.
check the details
For redundant configuration two Fieldbus Communication Interfaces CI845, two Ethernet Adapters TC810 and one TU860 or one TU865 are needed. For Select I/O High Integrity SIL3 one HI880 is needed.
check the details
The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O.
check the details
The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs).
check the details
The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements.
check the detailsSignup our newsletter to get update information, promotion and insight.
