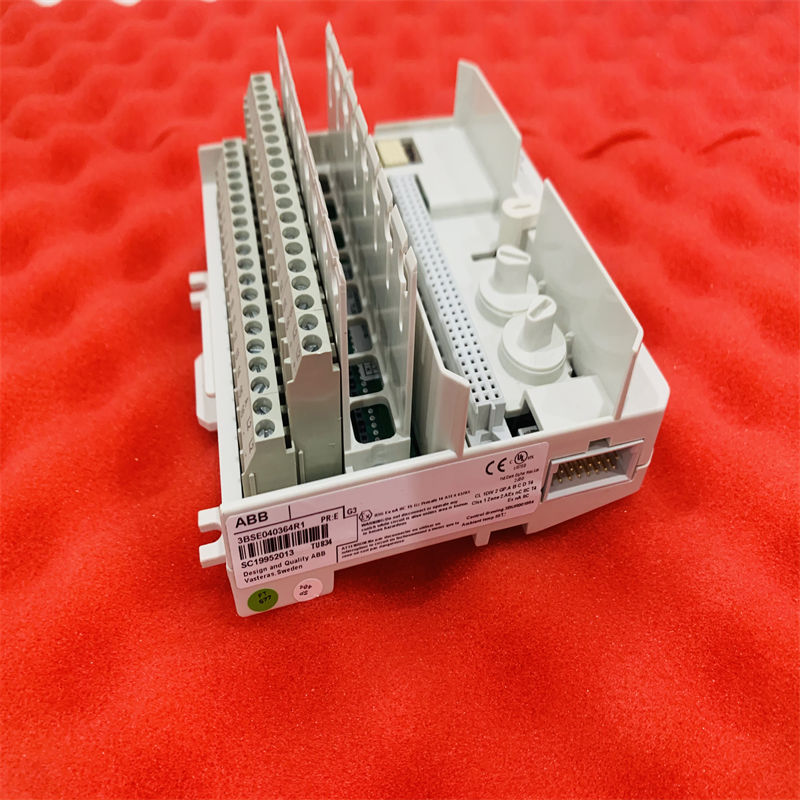

The TU834 is a 8 channels compact module termination unit (MTU) for the S800 I/O.
Item NO.:
TU834 3BSE040364R1Payment:
T/TMarket Price:
$80Product Origin:
Germany (DE) / Spain (ES)/ United States(US)Product weight:
0.28kgLead Time:
In stockShipping Port:
Xiamen
|
» Description |
| Manufacture | ABB |
| Model | TU834 |
| Product ID | 3BSE040364R1 |
| Catalog | Advant 800xA |
| Description | TU834 Compact MTU |
| Country of Origin | Germany (DE) / Spain (ES)/ United States(US) |
| Dimension | 126mm*64mm*110mm |
| Weight | 0.28kg |

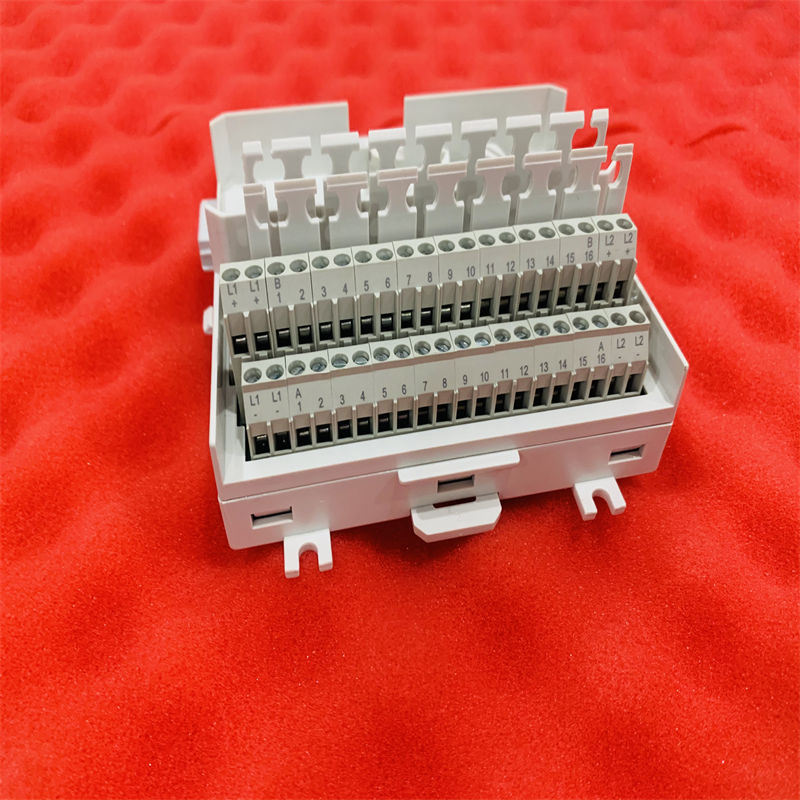

The TU834 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU. The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.
Features and benefits:
1. Complete installation of I/O modules using 2-wire connections and field power distribution.
2. Up to 8 channels of field signals and process power connections.
3. Mechanical keying prevents insertion of the wrong I/O module.
4. Latching device to DIN rail for grounding.
5. DIN rail mounting.
6. Include 8 individual shunt sticks.
|
ABB TU834 3BSE040364R1 Compact MTU Datasheet
